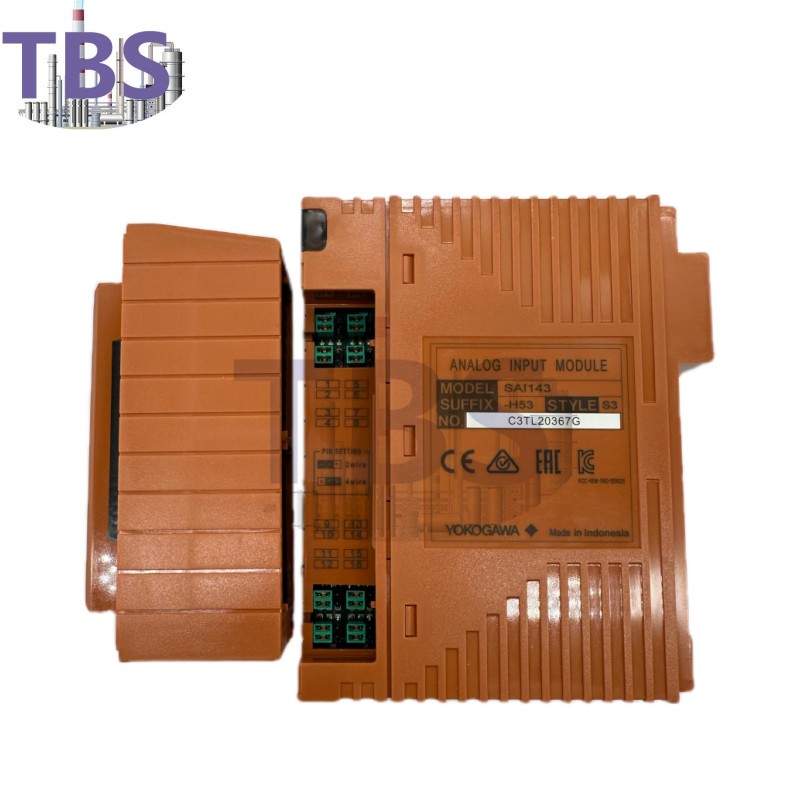

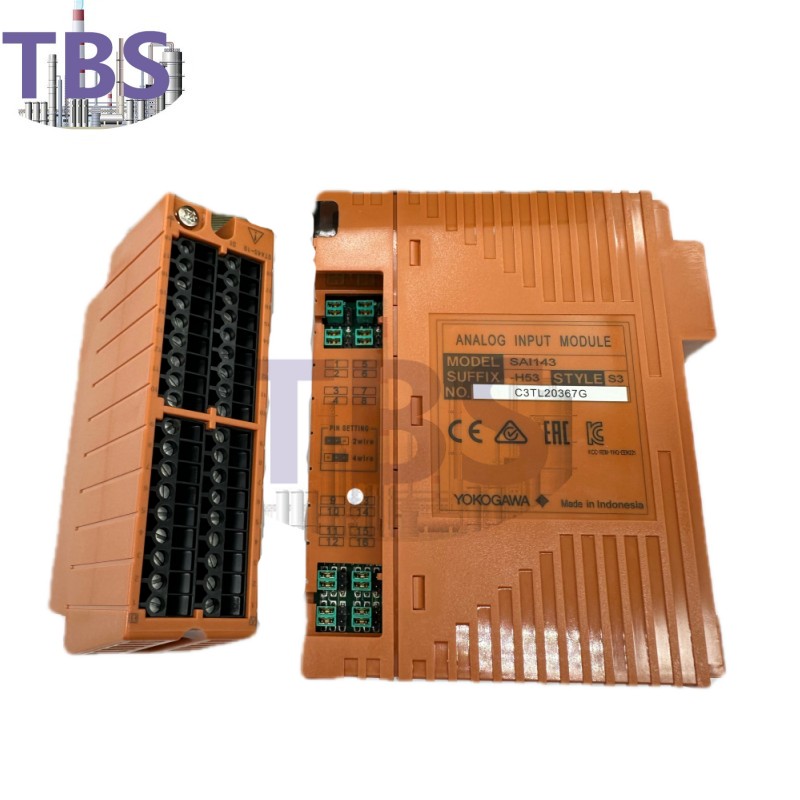

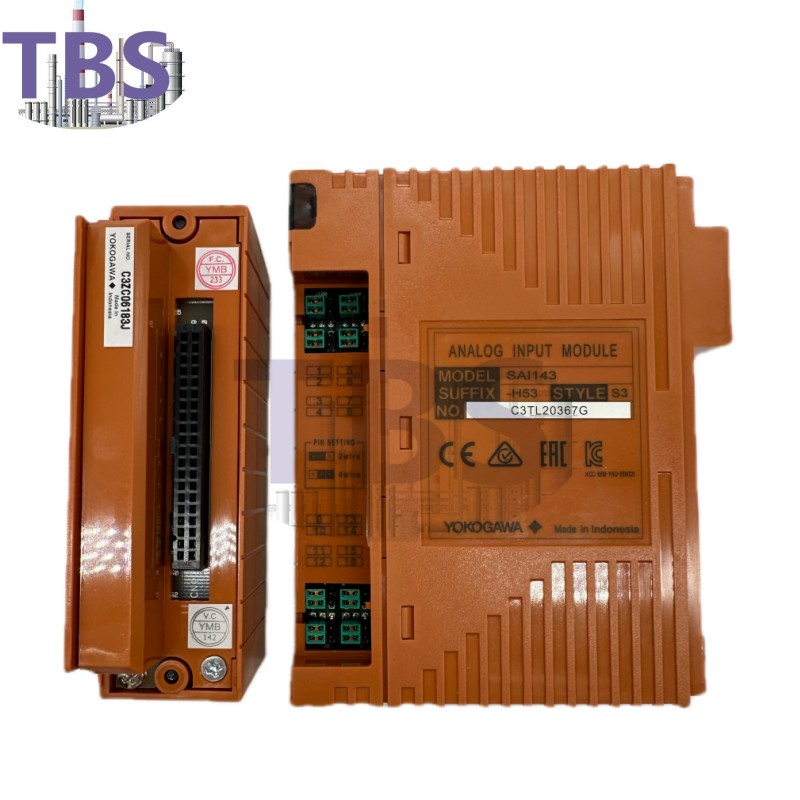

Yokogawa SAI143-H53 Analog Input Module

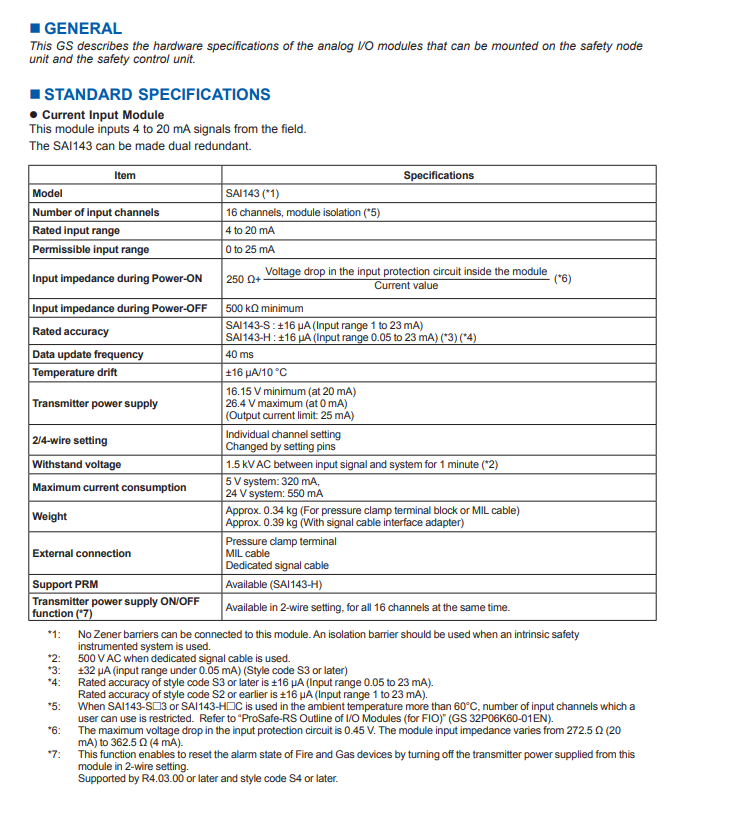

Datesheet

Product description:

PROSAFE-RS

Seamlessly integrates the distributed control system DCS (Distributed Control Systems) and security instrument system SIS (SAFE Instrumented System), which simplifies the factory automation design and improves the integration of equipment.

In traditional cases, DCS and SIS are two independent systems. Each system requires its own communication platforms and hardware structures. Under such circumstances, it is necessary to spend a lot of engineering time and manpower and material resources in order to realize the operation of the factory.

Integrated architecture

The seamless architecture realizes the true integration of DCS and SIS, helping the factory to operate.

Expected operation benefits:

-The project execution is faster and the cost is lower (only one process network is used to save engineering design time)

-A more operating efficiency (the integrated information display is more clear and practical)

-Pelasa is lower (common control and network architecture standards reduce maintenance costs)

Eliminate the complexity of SIS during configuration

The single module configuration of Prosafe-RS has obtained SIL3 certification. Each small input, output, and processor card are redundant. This single module architecture makes the system design very easy. If you need additional system availability, users can achieve function redundancy only by inserting appropriate modules.

Integrated network

Prosafe-RS directly connects to the network used by the Henghe motor Centum CS3000 R3. This system has undergone on-site inspection. Data exchange between SIS and DCS does not require gateway or interface hardware, which realizes secure communication between SIS controller, and has passed verification in the DCS-SIS integration configuration.

Expected benefits:

-In a simple way to provide system implementation

-Recent the complexity of the project and reduce the cost of SIS and DCS connection

-Reduce the maintenance cost of large factories

Safety communication logic solution implementation & control
