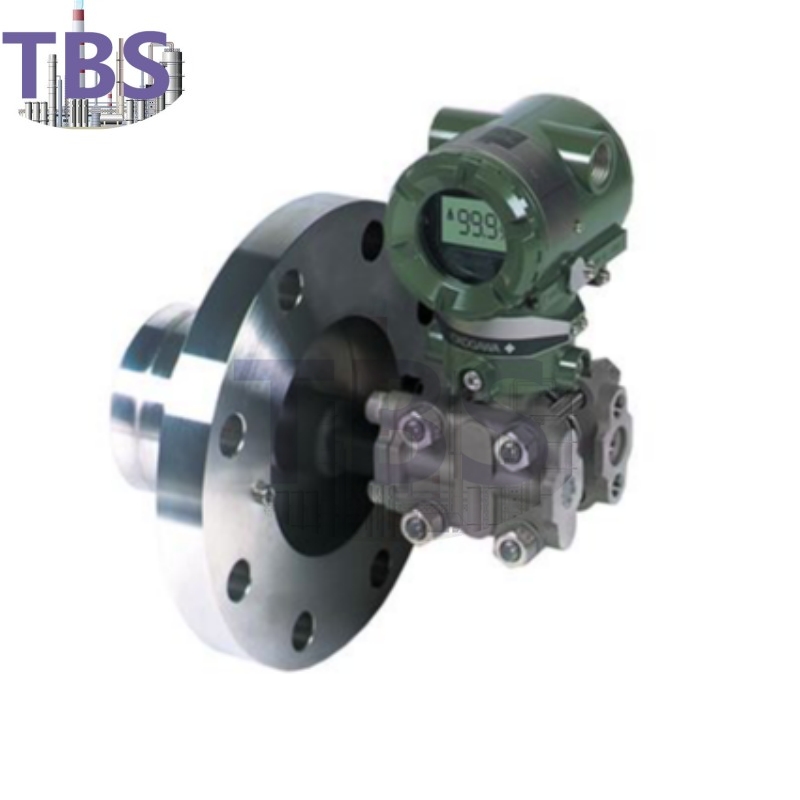

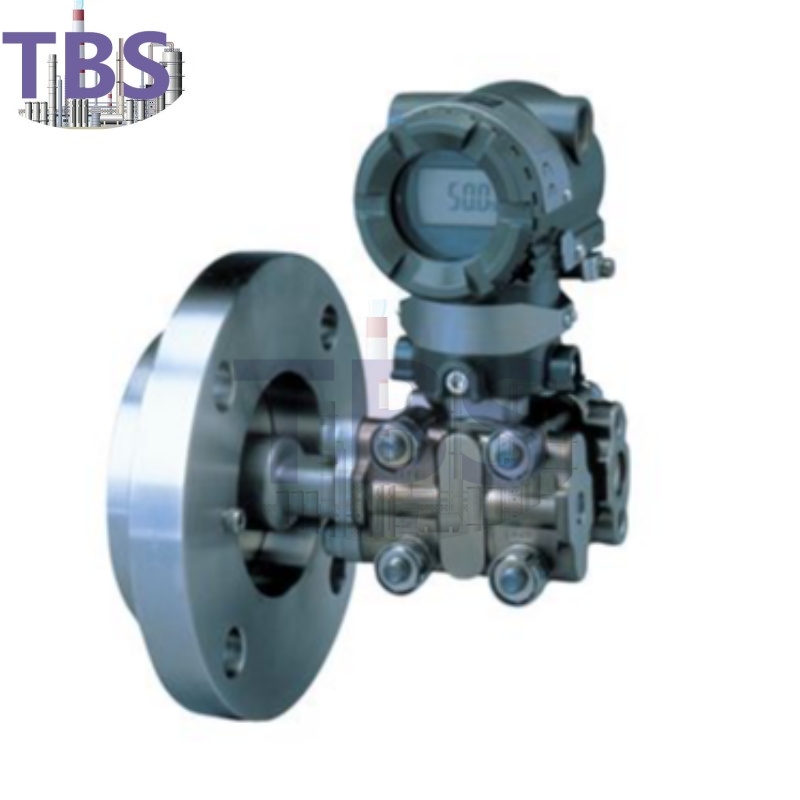

Yokogawa EJX210A Differential Pressure Transmitter
± 0.075% Accuracy
± 0.1% Stability per 1 year
120 ms Response Time
Exida and TUV SIL2 / SIL3 Certified
LPS (Local Parameter Setting)
Signal Characterizer for the 4 to 20 mA output
The EJX-A series is Yokogawa's premium performance line of DPharp transmitters. Released is 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters.
EJX210A Overview
Refer to the General Specification sheet located under the 'Downloads' tab for detailed specifications.
| Measurement Types | |
|---|---|
| Primary Variable | Liquid Level (Differential Pressure) |
| Secondary Variable | Static Pressure |
| Reference Accuracy | |
| Primary Variable | ±0.075% of Span |
| Secondary Variable | ±0.2% of Span |
| Response Time | |
| Primary Variable | 120 msec |
| Secondary Variable | 360 msec |
| Long Term Stability | |
| Primary Variable | ±0.1% of URL per 12 months (DP) |
| Rangeability | |
| Primary Variable | 100:1 |
| Specification Conformance | |
| EJX-A Series | ±3σ |
EJX210A Process Connections
| Process connection Type | Size | Extension | Flange | |
|---|---|---|---|---|
 | Flush Type | 3-inch 2-inch 1-½-inch | N/A | JIS 10K, 20K |
| ANSI 150#, 300# | ||||
| JPI Class 150, 300 | ||||
| DIN PN10/16, 25/40 | ||||

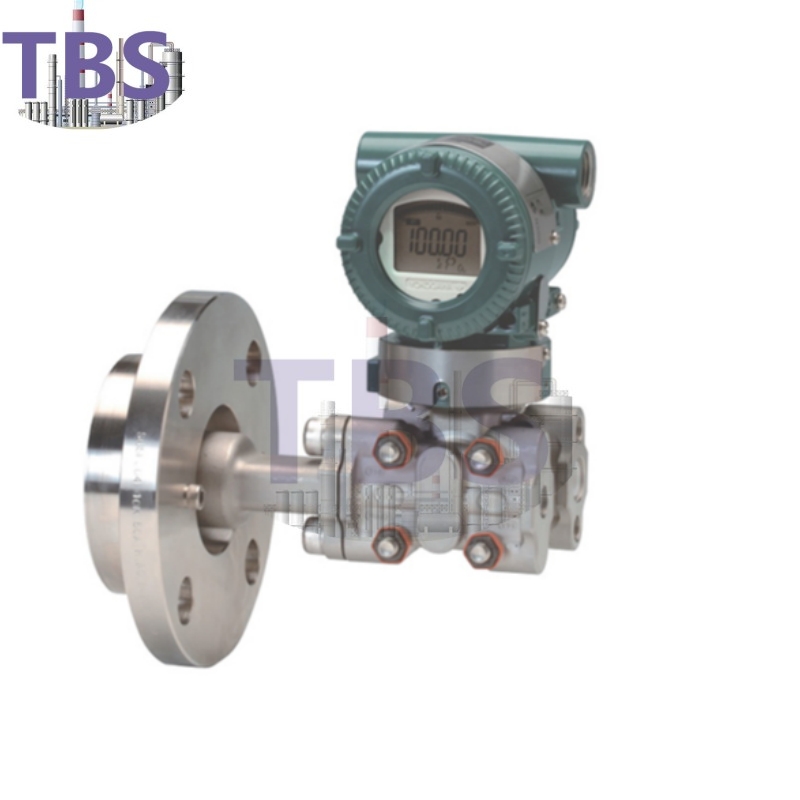

 | Extended Type | 4-inch 3-inch | 2-inch 4-inch 6-inch | JIS 10K, 20K |
| ANSI 150#, 300# | ||||
| JPI Class 150, 300 | ||||
| DIN PN10/16, 25/40 |
Flushing Connection Ring
A Flushing Connection Ring, a round device that is placed between the diaphragm seal and the process connection. The device has two 1/4-inch ports that can be used to run a flushing solution across the face the seal to clean it. If you need a different size port, Yokogawa also offers Flushing Connection Rings supplied by a global partner WIKA.
