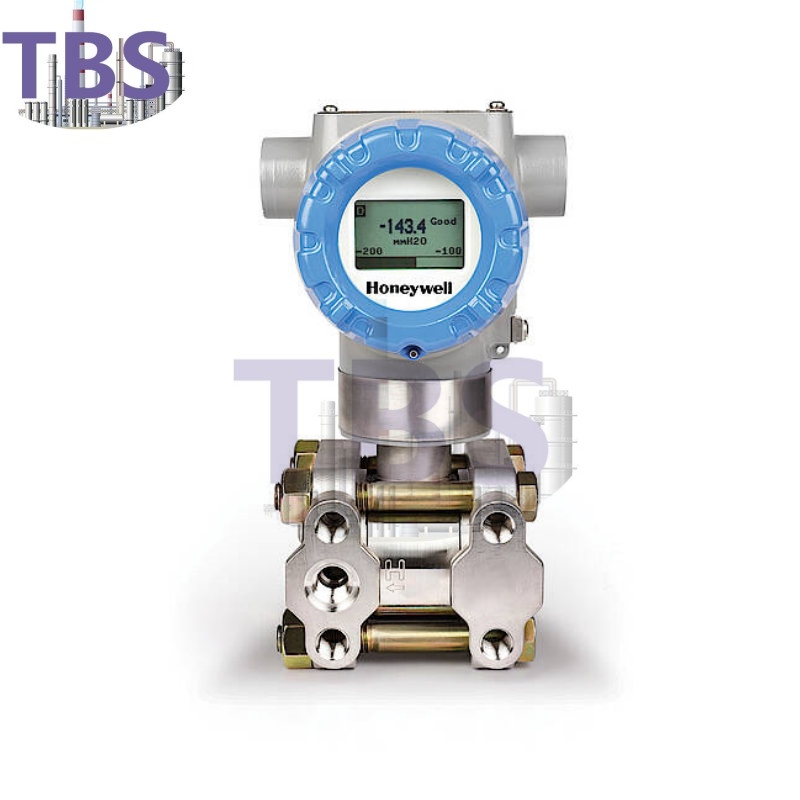

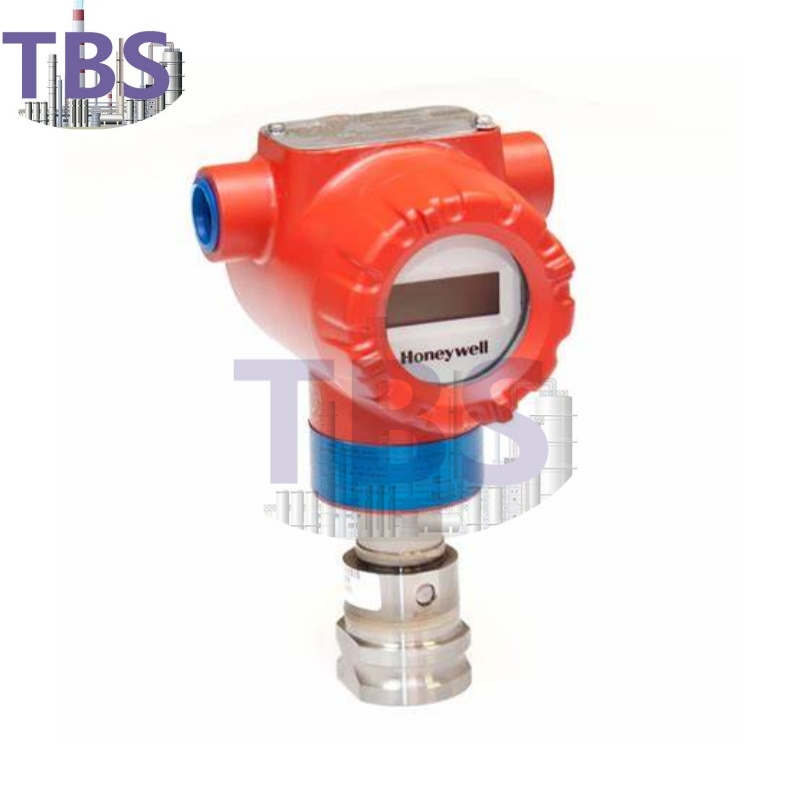

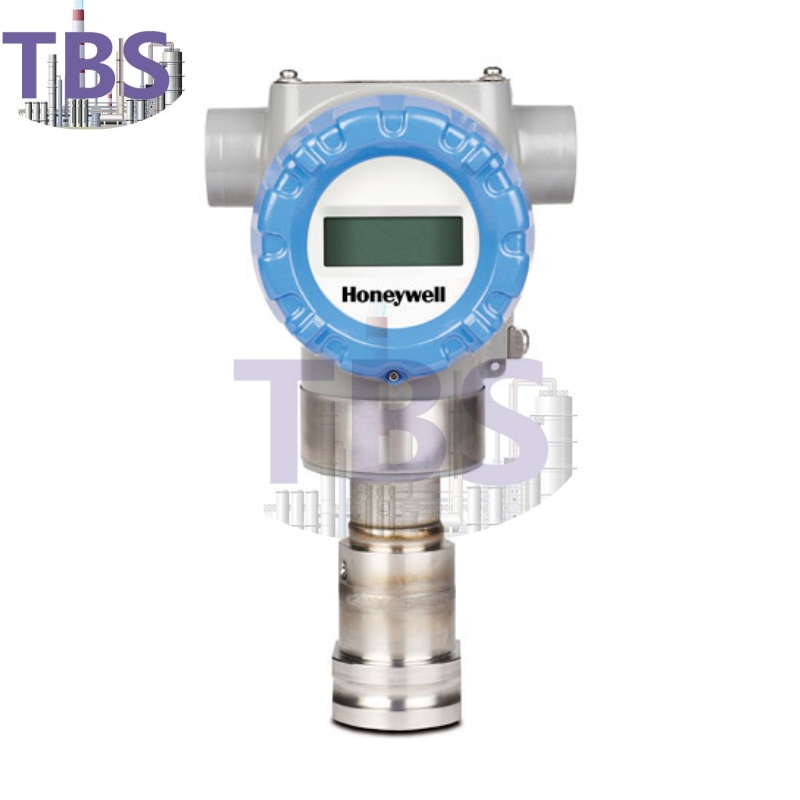

Honeywell STG700 Smartline smart pressure transmitter

Overview:

A member of the Smartline® product family, the STG700 is a high-performance pressure transmitter with advanced sensor technology. By combining absolute pressure with static pressure and temperature compensation on the sensor chip, the STG700 provides extremely high measurement accuracy and stability over a wide range of static pressures and temperatures. Smartline is fully tested and Experion®PKS compliant to provide the highest level of compatibility assurance and integration capabilities. Smartline products can easily meet the most demanding requirements of pressure measurement.

Instructions:

The Smartline series of pressure transmitters are designed based on high-performance sensors. This single sensor actually integrates multiple sensors, combining process pressure measurement with static pressure (DP model) and temperature measurement for temperature compensation, thus achieving the best overall performance.

Features:

● The accuracy of calibration range reaches 0.065%

● Stability: 0.015% full scale, keep for 5 years

● Automatic temperature compensation

● Range ratio 100:1

● Response time up to 100ms

● Alphanumeric display function

● External zero, range and configuration functions

● Power supply polarity arbitrary connection

● Perfect self-diagnosis function

Integrated dual encapsulation design based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0 for maximum security

● Standard configuration fully meets SIL2/3 requirements.

● Full modular design

Communication/Output options:

● 4-20mA dc

● Honeywell Digital Enhancement (DE)

● HART® (Version 7.0)

● FOUNDATION™ Fieldbus

All pressure transmitters can be equipped with the communication protocols listed above.

The following models are available:
