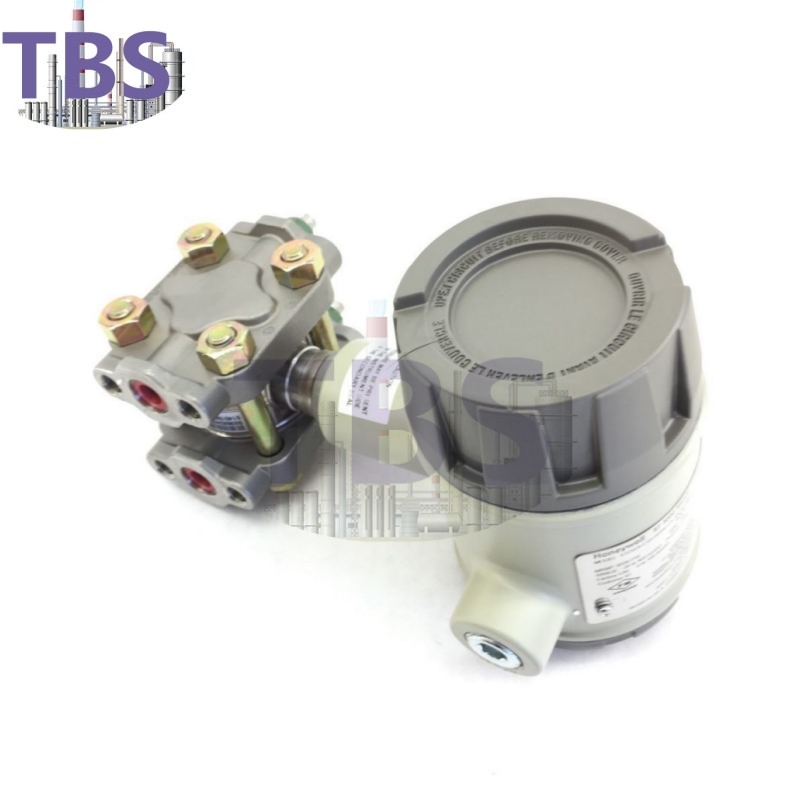

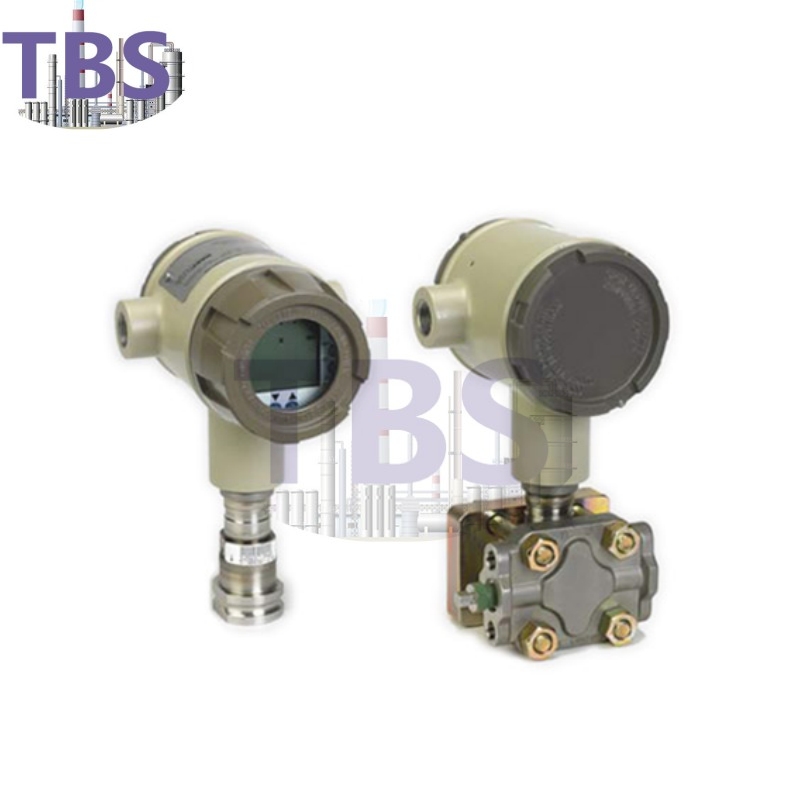

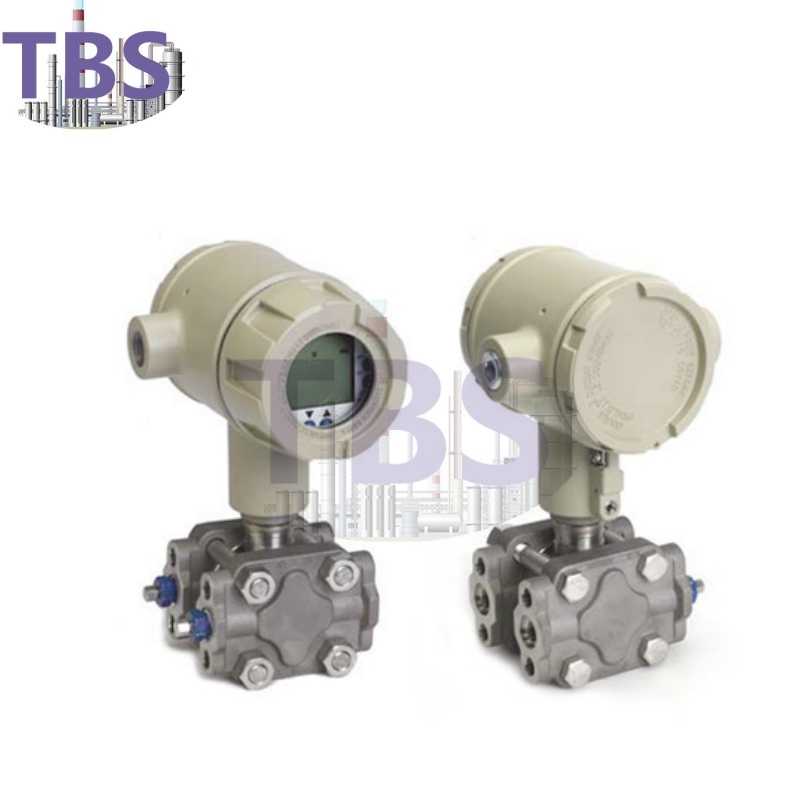

Honeywell ST3000 pressure transmitter
Various intrinsic safety and flameproof certifications are available.
Optional HART protocol.
Optional Fieldbus (FF) communication protocol.
Use a field communicator or MCT multiprotocol communicator to implement pairs
Small size, light weight: 4.lKg.
HONEYWELL ST3000 Pressure transmitter Product Description:
ST 3000 Series - Competitive price and performance
The 900 Series intelligent transmitters meet the requirements of industry standards. Accurate, reliable, and stable, the 900 Series transmitter offers a wide range ratio. Local zero and range adjustment allows the transmitter to be set without a hand-held communicator. In terms of total cost, the 900 series transmitters provide customers with significant savings. The self-diagnostic and remote diagnostic communications of the 900 Series transmitters reduce or eliminate the time and effort required to perform tasks to remote, geographically dispersed areas. The configuration flexibility and wide range ratio of the 900 series reduce the number and type of spare instruments you need in your hand.
ST 3000: Meet your pressure measurement needs
Honeywell's ST 3000 transmitter includes a complete range of differential, absolute, gauge, differential, remote flanges, and level transmitters. Honeywell's new pressure measurement Lifetime transmitter offers customers exceptional accuracy, stability, reliability and wide range ratio with the industry's best warranty.
Self-diagnostics and two-way communication greatly reduce start-up and maintenance time and costs. Honeywell's technologically advanced instrumentation enables customers to improve production processes and meet a wide range of needs, enabling production and products to meet high quality standards. The features and benefits of the ST 3000 Smart Pressure transmitter include:
Automatically compensates ambient temperature and process static pressure changes to ensure the accuracy of the final output signal
each transmitter is characterized so that the best analog compensation curve is adopted according to the specific situation
By using batch preconfiguration, the loop startup time can be greatly reduced
Temperature and pressure compensation virtually eliminates measurement errors with conventional transmitters
Continuous self-testing greatly improves process reliability and performance.
The elimination of drift ensures that product quality meets standards
In situ configuration with an Intelligent Field Communicator (SFC) allows transmitters to be set up, calibrated and troubleshooting in the field
Reduce transmitter data management costs, improve maintenance efficiency, expand diagnostic coverage, and reduce inventory requirements and start-up costs, all of which enable product cost recovery in a short period of time.
meters are available with DE (Digitally enhanced), HART, and FF fieldbus protocols.
Honeywell ST3000 series full intelligent differential pressure transmitter measurement object
1. Differential pressure measurement
2. Pressure measurement (low pressure end to atmosphere)
3. Flow measurement with throttling device
4. Level measurement (non-viscous/non-crystalline liquid percussion
5. Interface measurement (non-viscous/non-crystalline liquid percussion
