Honeywell SmartLine STD800 - Differential Pressure
Accuracies up to 0.035% of span standard & 0.025% of span optional
Stability up to 0.01% of URL per year for 15 years
Automatic static pressure & temperature compensation
Rangeability up to 400:1
Response times as fast as 90ms
Multiple local display capabilities
Product Info

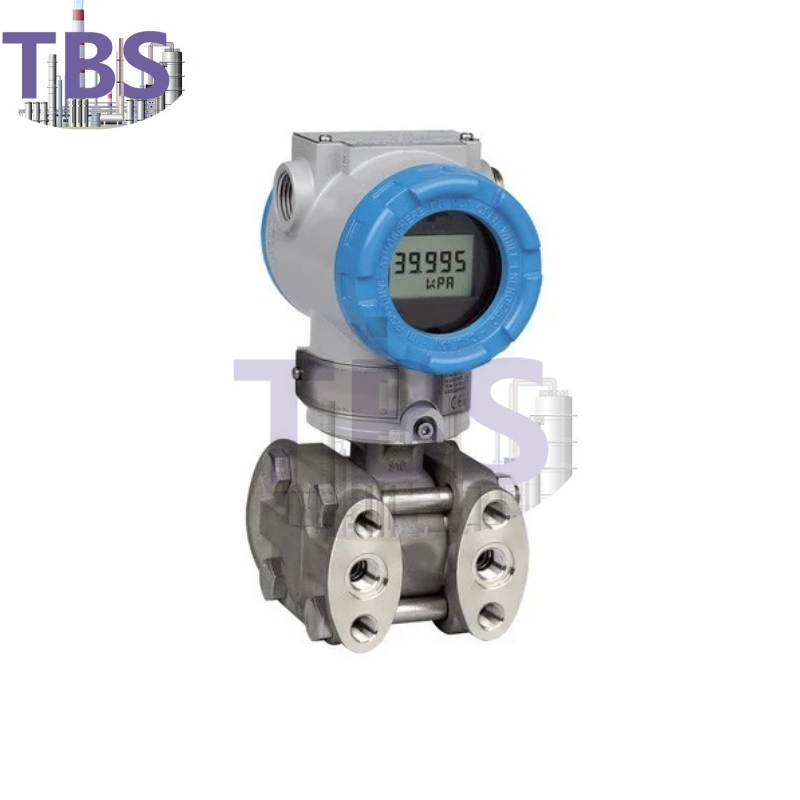

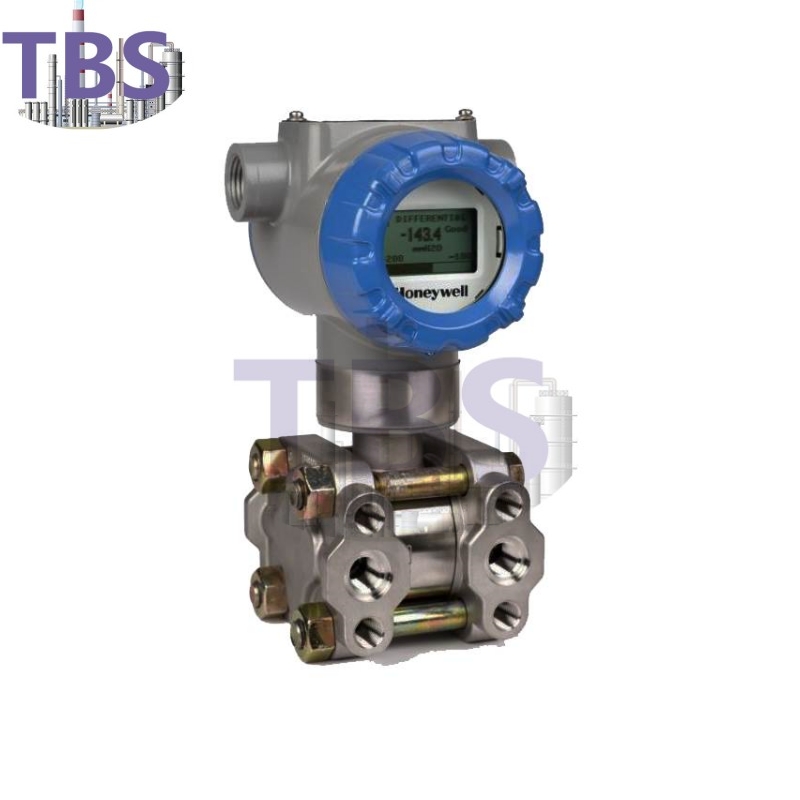

SmartLine STD800 – Differential Pressure
Part of the SmartLine® family of products, the STD800 is a high performance differential pressure transmitter featuring piezoresistive sensor technology. By combining differential pressure sensing with on chip static pressure and temperature compensation the STD800 offers high accuracy and stability over a wide range of application pressures and temperatures. The SmartLine family is also fully tested and compliant with Experion ® PKS providing the highest level of compatibility assurance and integration capabilities. SmartLine easily meets the most demanding application needs for pressure measurement applications.
Key Features
Accuracies up to 0.035% of span standard & 0.025% of span optional
Stability up to 0.01% of URL per year for 15 years
Automatic static pressure & temperature compensation
Rangeability up to 400:1
Response times as fast as 90ms
Multiple local display capabilities
External zero, span, & configuration capability
Polarity insensitive electrical connections
Comprehensive on-board diagnostic capabilities
Integral Dual Seal design for highest safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
World class overpressure protection
Full compliance to SIL 2/3 requirements.
Modular design characteristics
Available with additional 15-year warranty
Plugged Impulse Line Detection Option
Dual/Triple Calibration Option (HART & Fieldbus only)
Communications/Output Options
4-20 mA
Honeywell Digitally Enhanced (DE)
HART ® (version 7.0)
FOUNDATION™ Fieldbus
Honeywell offers the following ST800 Remote Diaphragm Seal Transmitters:
Flush flange seals
Flange seal with extended diaphragm
Pancake seals
Sanitary seals
Chemical tee Taylor wedge
Seals with threaded process connections
Saddle seals
Calibration rings
Stainless steel armor and PVC-coated, stainless steel armor capillaries
2” stainless steel nipples
Welded meter body
