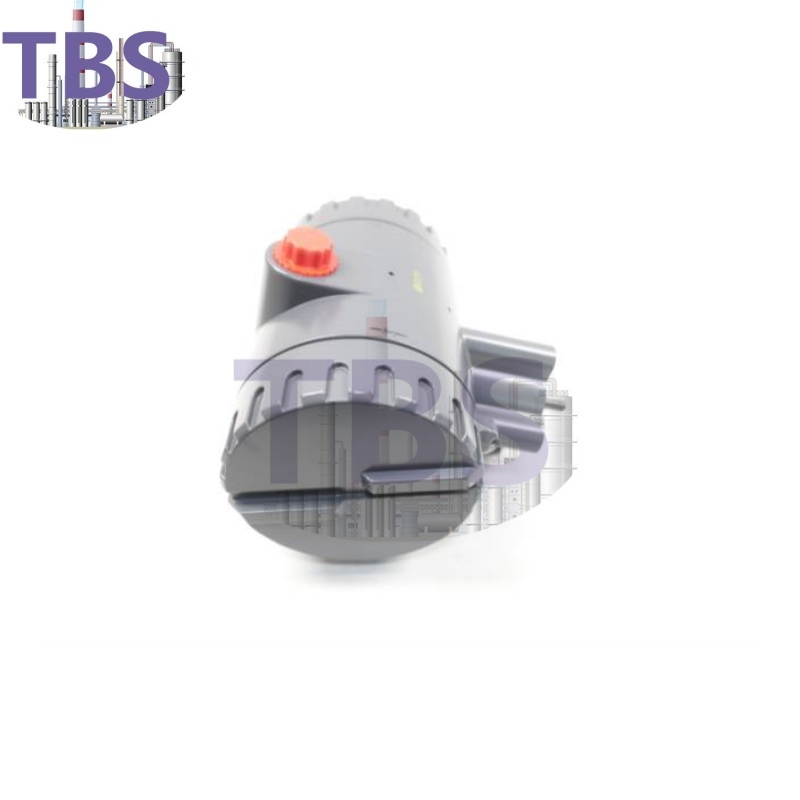

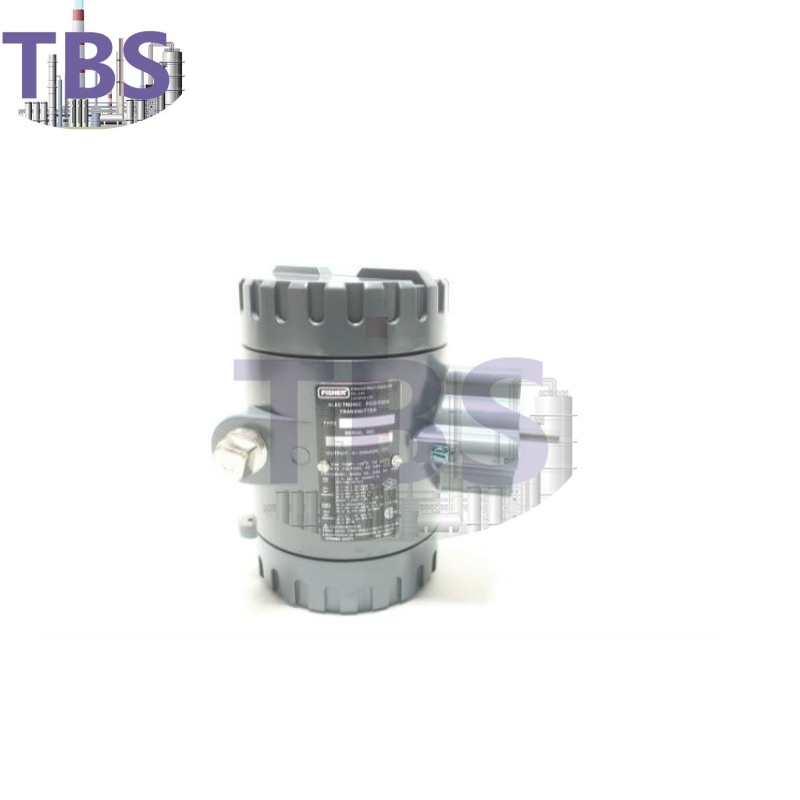

Fisher 4211 Electronic Position Transmitter

Fisher 4211 Electronic Position Transmitter


Simple circuit
Easy to maintain
Moisture resistance
Reversible field operation

Send Inquiry

The Fisher 4200 position transmitter senses the position of rotary or sliding-stem valves, vents, dampers, or other devices. When the instrument is mounted, a potentiometer shaft is mechanically connected to the device to sense mechanical motion. The instrument has standard or long-stroke capabilities for sliding-stem actuator applications. For long-stroke applications, a multi-turn potentiometer attached to a travel transducer assembly is used to sense linear motion of the actuator stem or other devices. This instrument with standard capabilities can also be used on quarter-turn actuators.


Specifications


  • Area Classification

  • Explosion Proof, Intrinsically Safe, Non-incendive, General Purpose, Flame Proof

  • Certifications

  • CSA, FM, ATEX, IECEx, CUTR, Regional

  • Communication Protocol

  • 4-20mA Analog, Discrete Alarms

  • Data Interface

    Wired

  • Diagnostics

    No

  • Input Signal

  • Electric

    • Mounting Type

    • Actuator Mount

    • Operating Temperature

    • Standard Temperature

    • Position Control

    • Modulating Control

    • Power Source

    • Local

    • Other Configurations

    • Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.


    Technical parameters:


    Output signal: 4~20mA DC;

    Precision: ±0.5%;

    Input resistance: 0~1KΩ;

    Load resistance: ≤300Ω;

    Power supply: AC 190~250V, 50Hz;

    Working environment: -20~40℃.


    Turn on the power supply, operate the valve to the fully open position, adjust the potentiometer by 20mA, and make the current transmitter output 20mA (turn the current clockwise to increase).

    Operate the valve to the fully open and closed position, adjust the potentiometer by 4mA, and make the current transmitter output 4mA, (turn the current clockwise to increase).

    Repeat the operation of the valve to the fully open and fully closed position, and check again whether the output of the current transmitter is 20mA, 4mA.

    It can be used normally after debugging.
