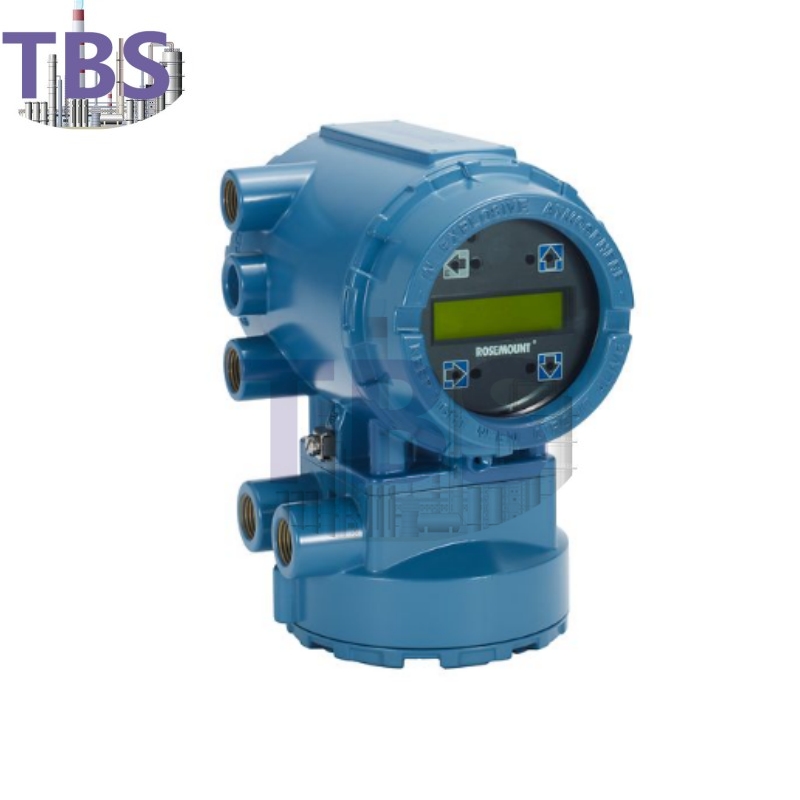

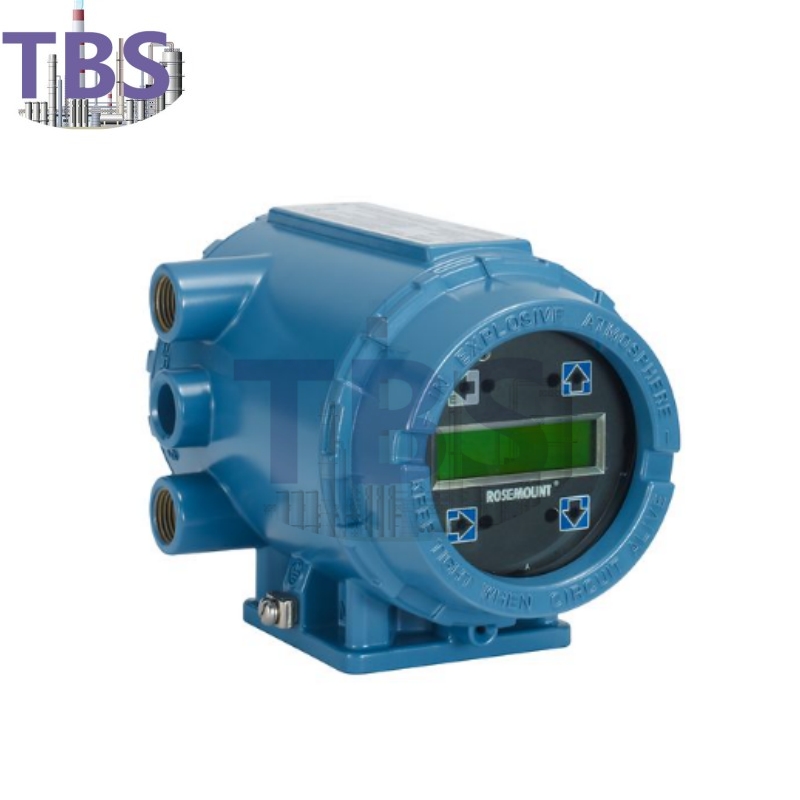

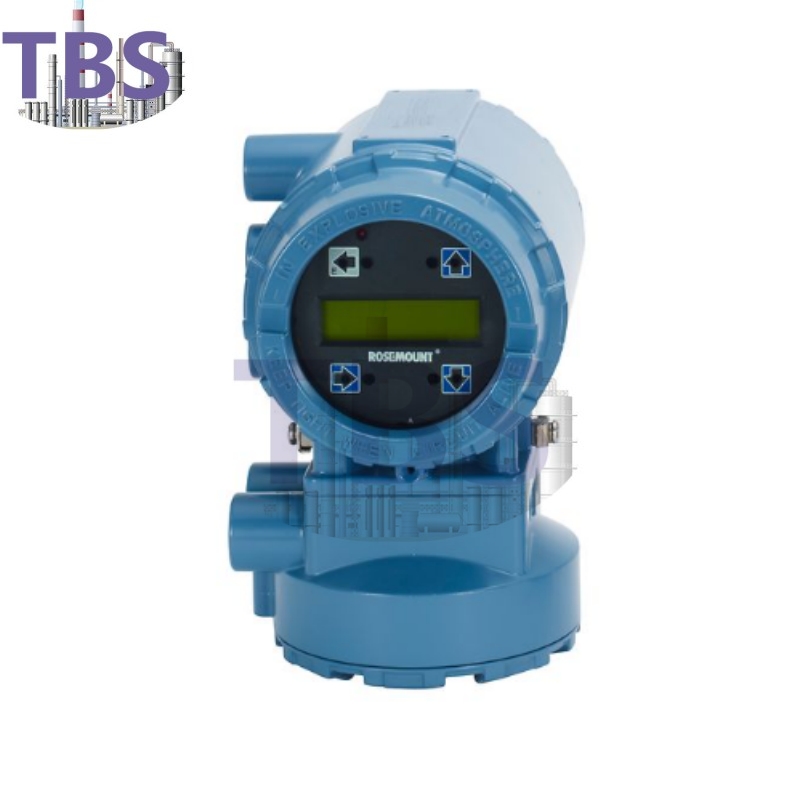

Rosemount 8732E Field Mount Magnetic Flow Meter Transmitter

Description

The Rosemount 8732E flow transmitter offers best in class performance coupled with advanced diagnostics to provide unparalleled process management capabilities. With multiple diagnostic suites available, the Rosemount 8732E provides users the tools required for highly accurate signal processing for fluids that are traveling between 0.04 and 39 ft/s (0.01 to 12 m/s)for both forward and reverse flow in all flowtube sensor sizes.

With an optional backlit 2 line by 16 character local operator interface, the Rosemount 8732E flow transmitter can be configured by optical switches to simplify adjustments in hazardous environments without removing the cover.

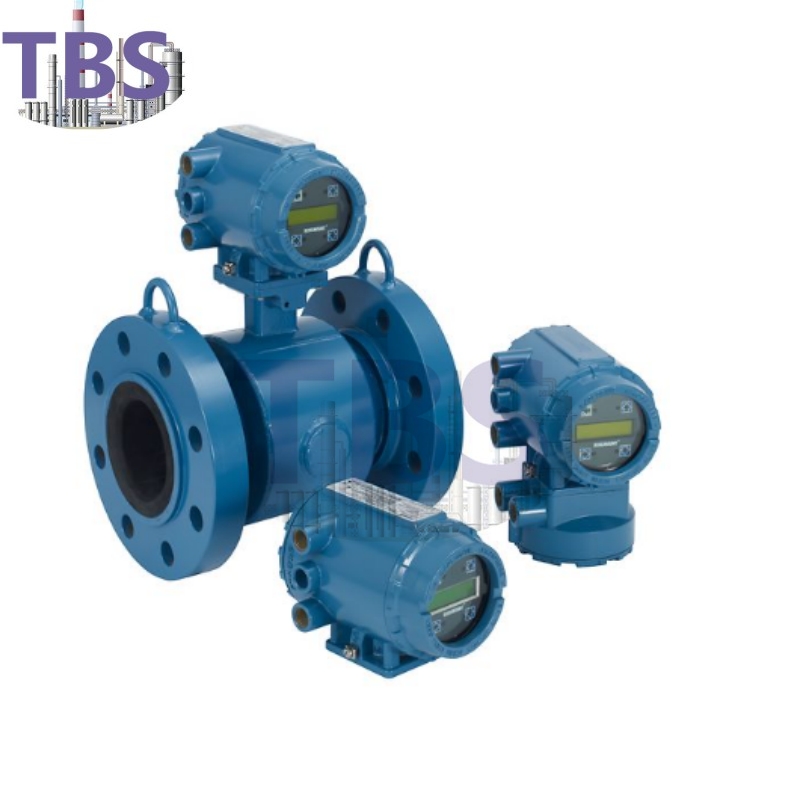

The Rosemount 8732E is compatible with the Rosemount 8705, 8711, 8721 and 570TM flowtube sensors. Compatible with Rosemount 8707 flowtube sensor with D2 dual calibration option. Compatible with AC and DC powered flowtube sensors of other manufacturers.

Specifications

• Sensor compatibility

• Compatible with Rosemount 8705, 8711, and 8721sensors. Compatible with AC and DC powered sensors ofother manufacturers.

• Transmitter coil drive current

• 500mA

• Flow rate range

• Capable of processing signals from fluids that are travelingbetween 0.04 and 39 ft/s (0.01 to 12 m/s) for both forwardand reverse flow in all sensor sizes. Full scale continuouslyadjustable between –39 and 39 ft/s (–12 to 12 m/s).

• Conductivity limits

• Process liquid must have a conductivity of5 microSiemens/cm (5 micromhos/cm) or greater.

• Power supply

• 90 - 250VAC, 50/60Hz or 12 - 42VDC

• Line power fuses

• 90-250VAC systems
  1A, 250V, I2t, 1.5 A2s Rating, Fast ActingBussman AGC-1, Littlefuse 31201.5HXP
  12-42VDC systems
  3 Amp, 250V, I2t, 14 A2s Rating, Fast ActingBel Fuse 3AG 3-R, Littelfuse 312003P, Schurter 0034.5135

• Line power fuses

• 15W maximum - DC
  40VA maximum - AC

• Switch-on current

• AC: Maximum 35.7A (< 5ms) at 250VAC
  DC: Maximum 42A (< 5ms) at 42VDC

Features

• Continually monitor meter health and performance without stopping the process with Smart Meter Verification

• Prevent moisture ingress with dual-compartment transmitter housing

• Improve process management with advanced Digital Signal Processing

• Optimize control in noisy applications with High Process Noise diagnostic and Selectable Coil Drive Frequency options

• Tunable Empty Pipe diagnostic minimizes issues and false readings when the pipe is empty

• Quickly verify installation integrity with Ground and Wiring Fault Detection diagnostic

• Simplify adjustments in hazardous environments without removing the cover using optical switches for configuration

• Universal transmitter capabilities enable reduced inventory and consistent interface for any magnetic flow meter sensor
