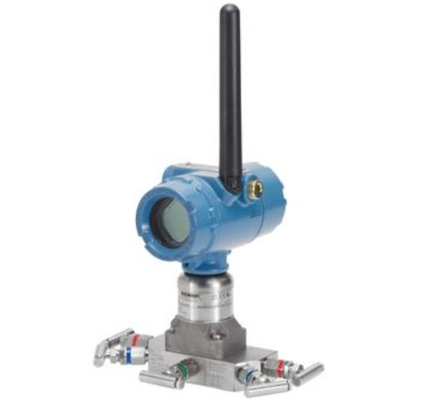

Rosemount 3051S Coplanar Pressure Transmitter

Product introduction：

The Rosemount 3051S In Line Pressure Transmitters are the industry leader for Gauge and Absolute pressure measurement. The in-line, compact design allows the transmitter to be connected directly to a process for quick, easy and cost effective installation.

With the Rosemount 3051S Series of Instrumentation, you can optimize your operation in four critical areas: production, quality, energy efficiency, and safety and environment. By leveraging the power of the scalable Rosemount 3051S across your entire operation, you will minimize process variability, gain greater process insight, reduce maintenance and downtime, and meet regulatory demands. What's more, it's easy for your people to use, ensuring you will realize the full potential of your measurement investment.

Model 3051S pressure transmitter is a large scale integrated pressure instrument designed and manufactured by Rosemount Company, which mainly consists of load cell sensors, measurement circuits and process connectors. It can convert the received gas, liquid and other pressure signals into standard current and voltage signals (4~20mADC) to supply the indicator alarm, recorder, regulator and other secondary instruments for measurement, indication and process regulation. A solid foundation for integrated pressure, flow and level measurement solutions. It is not only a super pressure and differential pressure transmitter with extremely high performance, but also a flowmeter and a liquid level meter. The new generation Rosemount 3051S series transmitters with a variable specification platform design enable optimized measurement concepts from design to installation, maintenance to operation.

Product advantage：

The Rosemount 3051S is the world's first scalable platform that offers integrated pressure, flow and level solutions. You can customize performance, function and process connectivity for your applications. 10 years stability. 10 years of power module life. Mount-ready pressure, flow and level solutions packaged in standardized, rugged, versatile platforms and Coplanar™ designs. Seamless integration of flanges, tubes, diaphragm seals and flowmeters speeds up start-up. It can be installed directly, which not only reduces maintenance work but also improves safety.

Stability: ±0.2% upper range limit (10 years).

Reference accuracy: ±0.025% range.

Certification: FM,CSA, ATEX, IECEx.

Power module life: send frequency 1 min -10 years.

Four users can configure reports for process monitoring.

Aluminum and stainless steel enclosures available.

Calibration differential pressure range 0.1inH2O to 2000 lb/inch 2(0,25mbar to 140bar).

Calibration pressures range from 0.3 to 10,000 LBS/inch 2(20,7mbar to 689bar).
