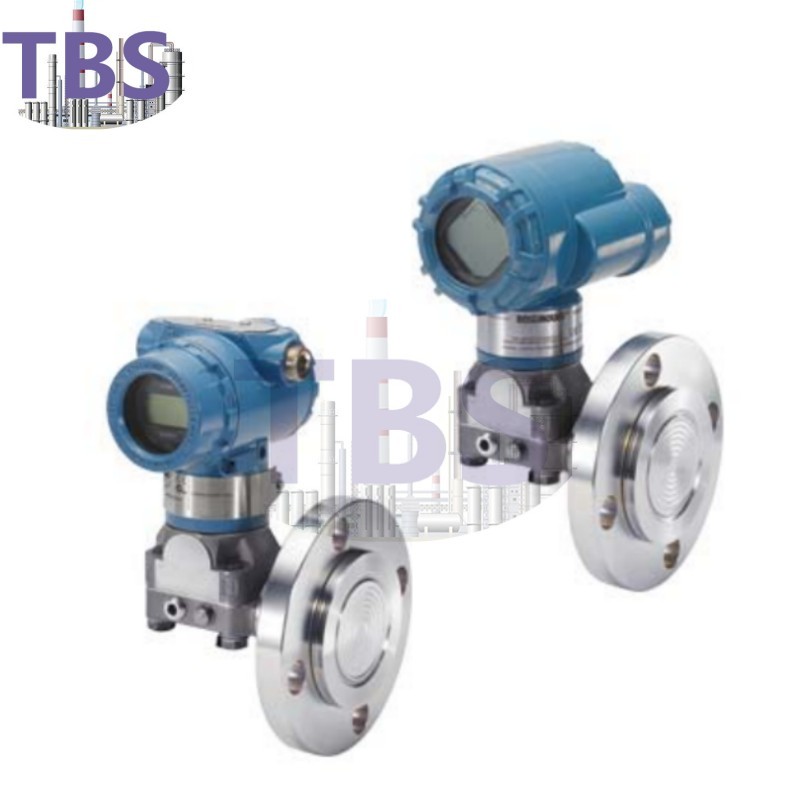

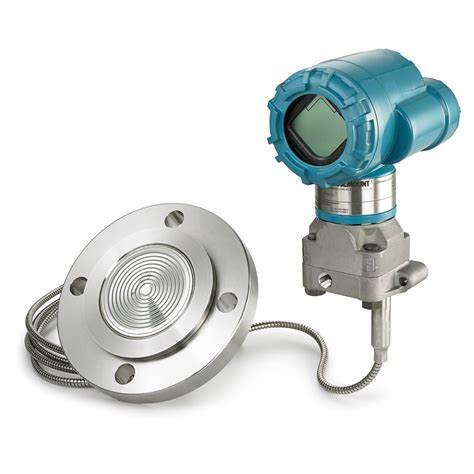

Rosemount 3051L Liquid level flow meter
Local display option for easy field measurements
HART, FOUNDATION Fieldbus, and wireless protocols
HART compatible for easy configuration and calibration
Comes standard with 316 stainless steel wetted materials for durability in most process applications
Introduction
Rosemount 3051L Coplanar Differential Pressure Transmitters are the industry standard for differential, level and pressure measurement. The coplanar platform enables seamless integration with manifolds, flow and level solutions.
Output
4-20 mA with digital signal based on HART Protocol
Low Power, 1-5 V dc with digital signal based on HART Protocol
Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional
Range
0-8.3 inches H2O to 0-300 psi
Accuracy
+/-0.075% of span
Power
4-20 mA: 10.5-42.4 V dc with no load
Low Power: 6-12 V dc with no load
Materials
Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum
Process Flange: Carbon Steel, Stainless Steel
Fluid
Sensor fill fluid: DC 200 Silicone, DC 704, Silicone, Syltherm 800, Syltherm XLT, Inert (Halocarbon), Glycerin and Water, Neobee M-20, Propylene Glycol and Water
Mounting
Coplanar and Traditional flanges
Adapters: High-side Diaphragm: 316L SST, Hastelloy C-276
Max. Operating Pressure
Up to 300 psi (20,68 bar)
Process Connection
Flanged: ANSI/ASME, EN/DIN, JIS
Process Wetted Material
316L SST, Alloy C-276, Tantalum
Diagnostics
Basic Diagnostics, Power Advisory Diagnostics
Features
Power advisory diagnostics proactively monitor electrical loop integrity
Local Operator Interface (LOI) for simple, local commissioning on-site without the use of extra tools
Tuned-System Level assembly and direct mounting produce optimal performance for level applications
Factory-assembled and out-of-the-box ready level solution eliminates on-site assembly, testing and calibration
Optimized seal system construction ensures a quality measurement in harsh process conditions
SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
