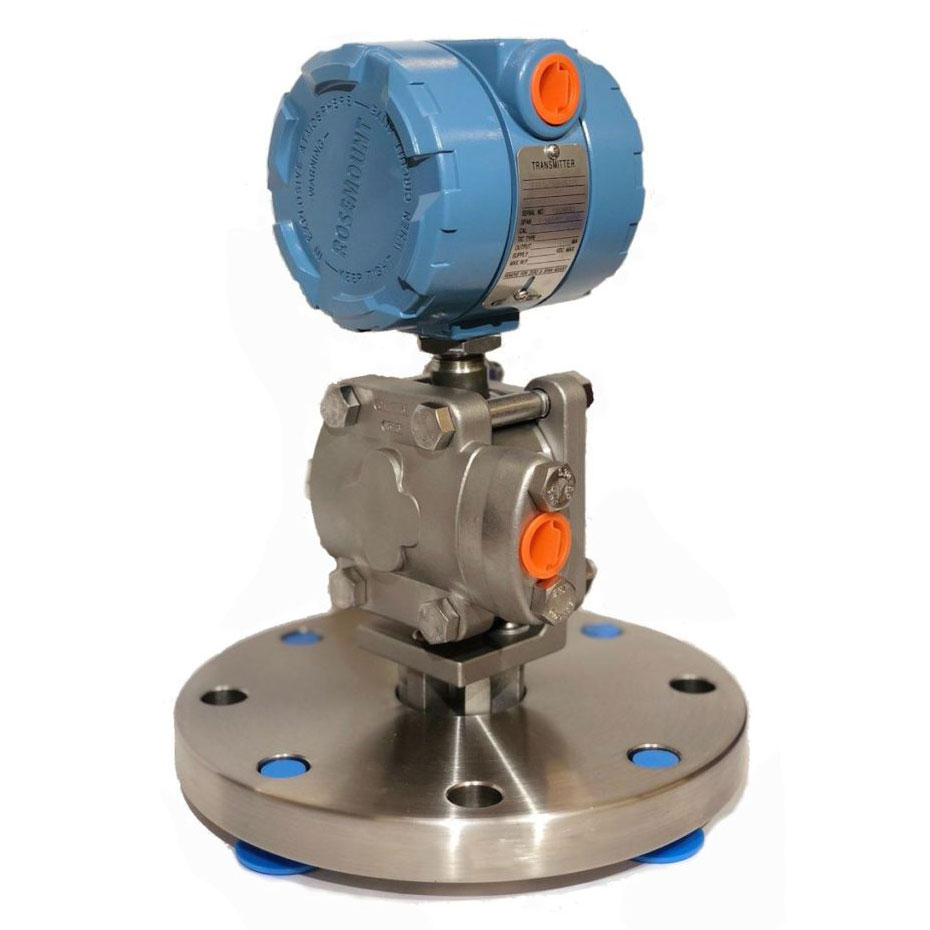

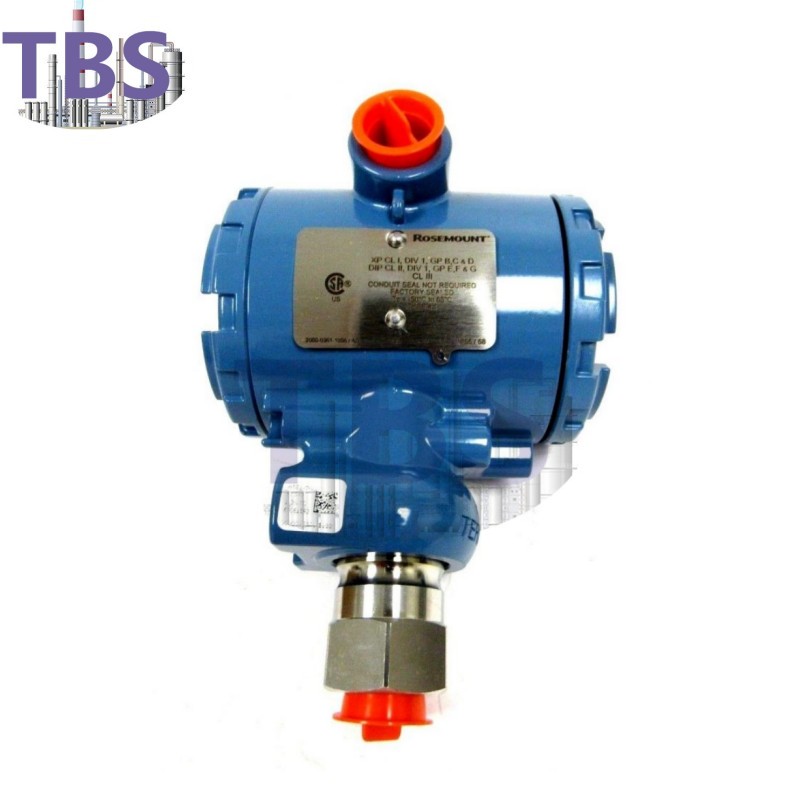

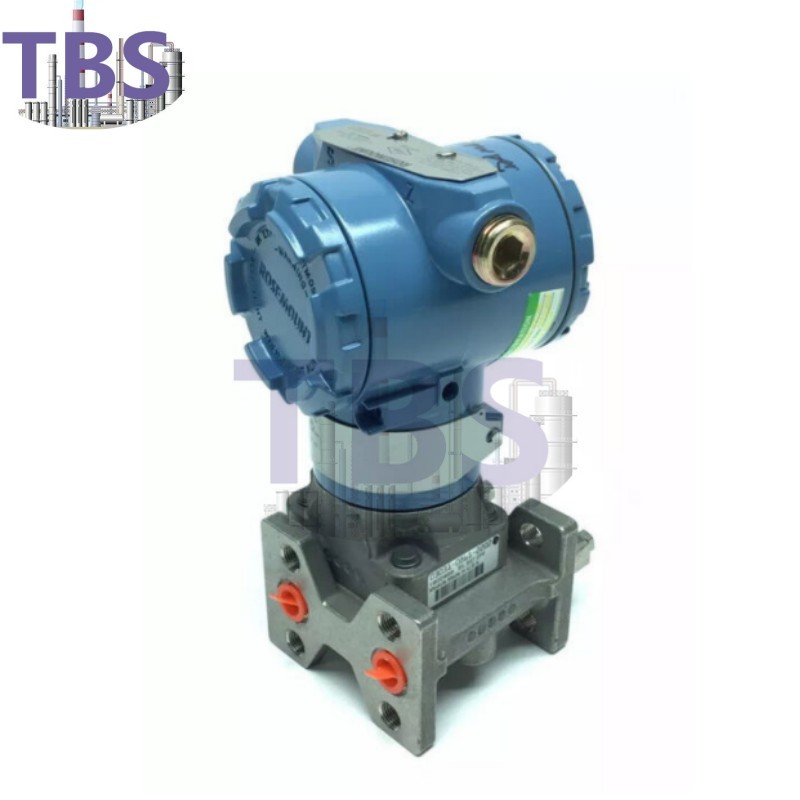

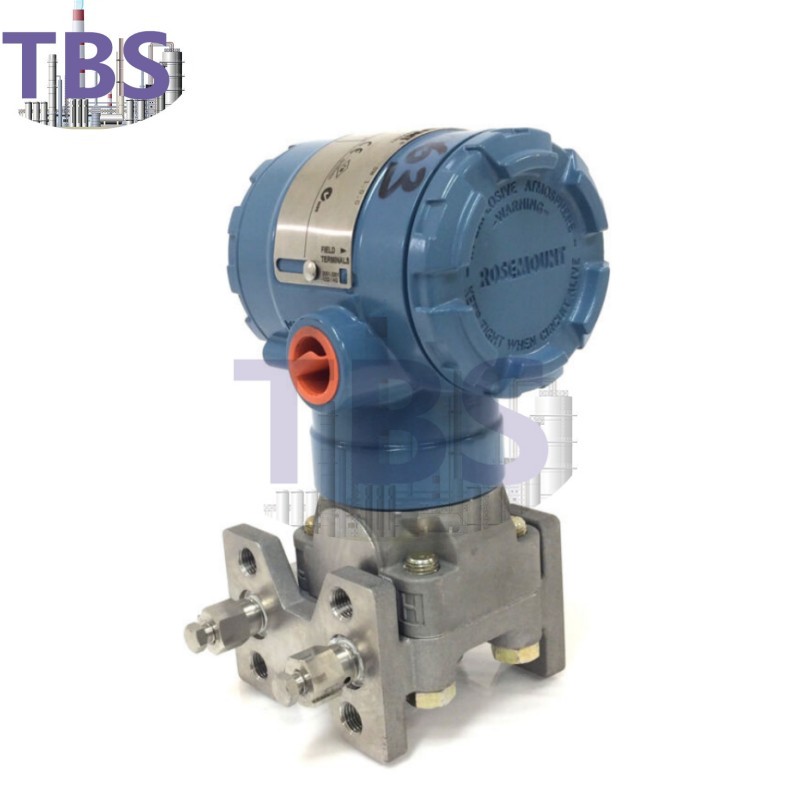

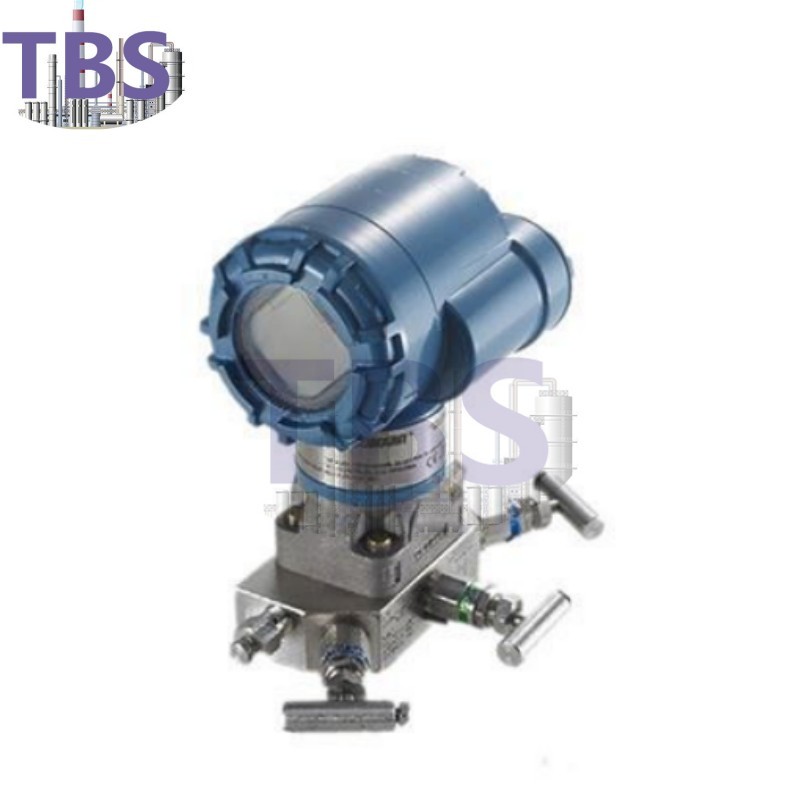

Rosemount 3051CG series Pressure Transmitters

Working principle

When the 3051CG series pressure transmitter works, the high, low -pressure isolation membrane and irrigation are passed on the process pressure to the filling liquid, and then the filling is passed on the sensor center of the sensor center. Sensing film is a tension elastic element that changes with the pressure of the displacement (for the GP surface pressure transmitter, the atmospheric pressure is like the low -pressure side of the sensor film). The AP stress transmitter always maintains a reference pressure at the low pressure side. The Z large displacement of the sensor film is 0.004 inches (0.1 mm), and the displacement volume is proportional to the pressure. The capacitor plate on both sides detects the location of the sensor membrane. The difference between the capacitor between the sensor and the capacitor plate is converted to the corresponding current, and the voltage or digital Hart (high -speed addressable remote transmitter data highway) output signal.

Characteristics

· The complete transmitter series

· Measurement range: 0-0.5inh2o to 6000PSIG

· Small structure, sturdy, earthquake resistance

· Modular structure

· Deloma can be adjusted

· Various options to make the application flexible

· Intelligence, simulation or low power consumption circuit

· Electrical connection and installation: equipped with multiple processes connectors and installation flange.

Specifications

• Warranty：

• Up to 1-year limited warranty

• Rangedown：

• Up to 150:1

• Communication Protocol：

• 4-20 mA HART, WirelessHART®, FOUNDATION fieldbus, Profibus, 1-5 V Low Power HART

• Measurement Range：

• Up to 20000 psig (1378,95 bar) Gage, Up to 20000 psia (1378,95 bar) Absolute

• Process Wetted Material：

• 316L SST, Alloy C-276

• Diagnostics：

• Basic Diagnostics, Power Advisory Diagnostics

• Certifications/Approvals：

• SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous location, see full specs for complete list of certifications
