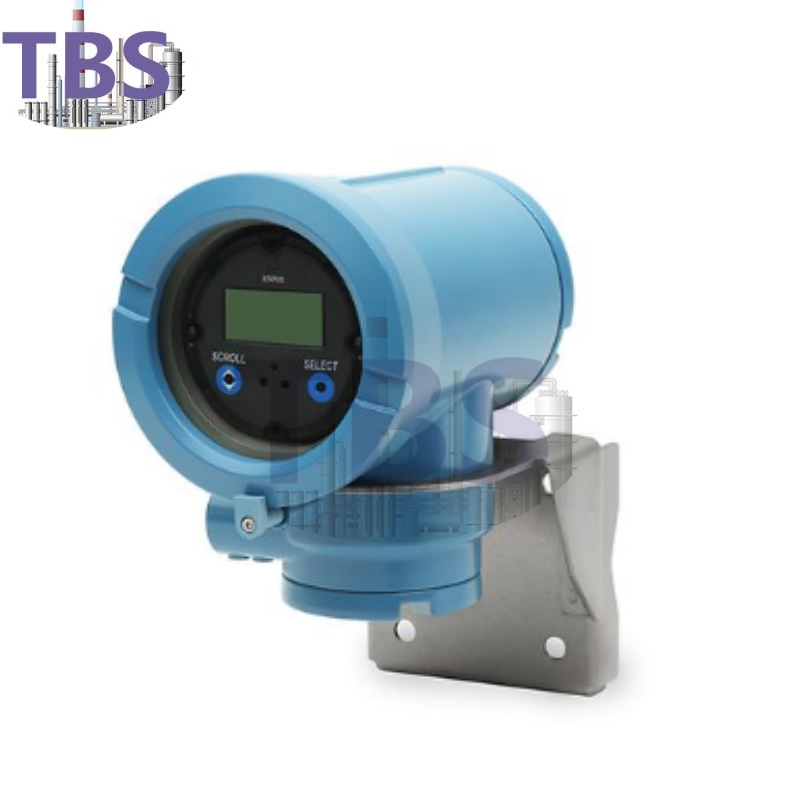

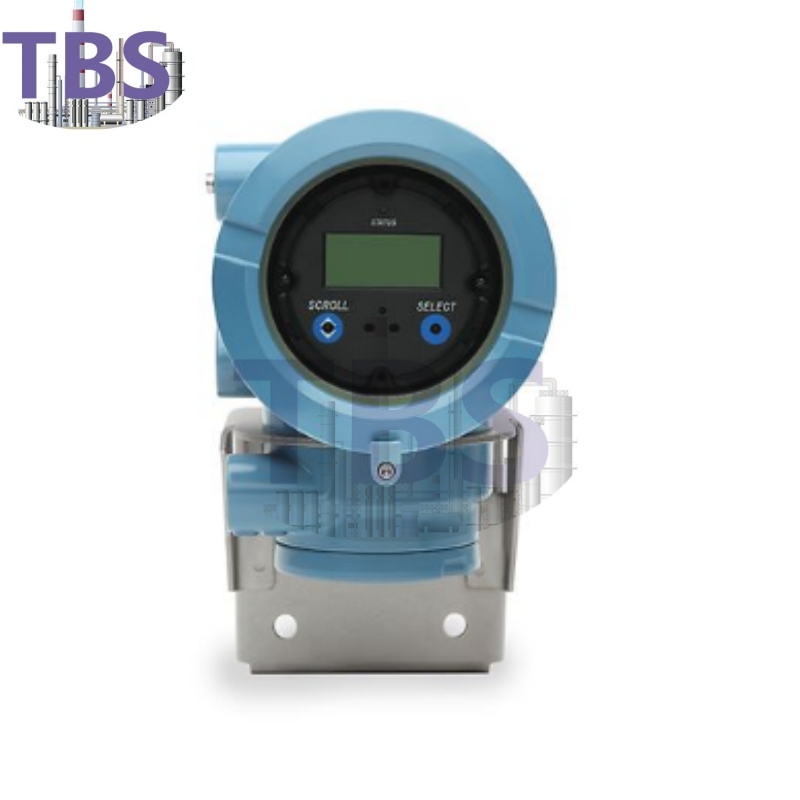

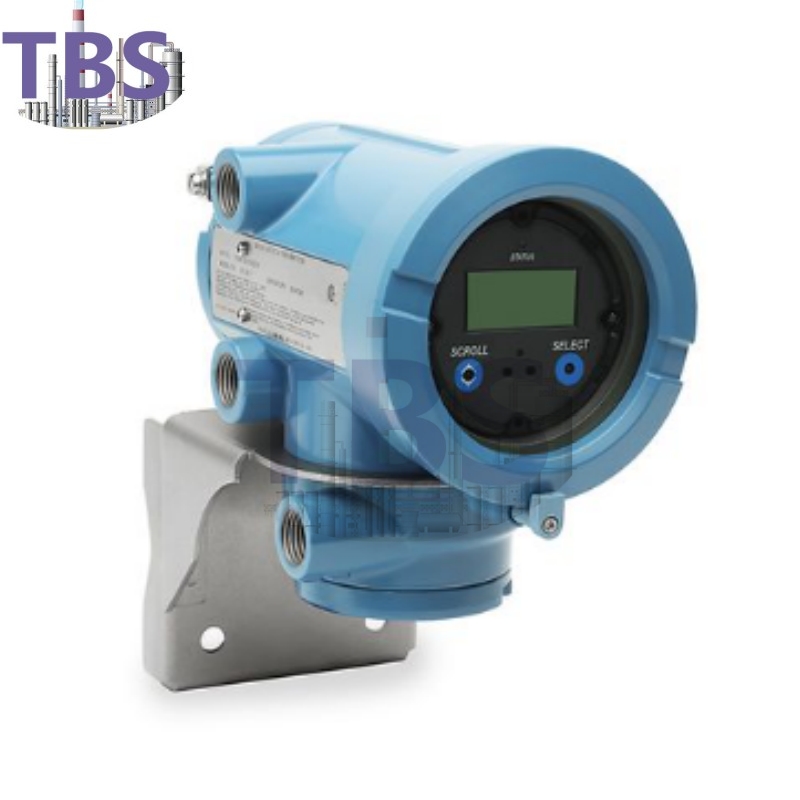

Micro Motion 1700 and 2700 Field and Integral Mount Transmitter

Description

Micro Motion 1700 single variable flow transmitters are powered by MVD Technology and designed for compact integral mounting, or to easily mount on a wall or pipe stand. These transmitters feature a rugged Class I, Division 1 / Zone 1 housing with an optional local operator interface designed to make flow meter access easy. Flow meter commissioning is simple and straight-forward with virtually no special programming requirements.

MVD technology is high-speed signal processing that is embedded in electronics to deliver accuracy under the toughest conditions: entrained gas, high noise, high turndown and more. The front-end digital processing dramatically reduces signal noise and gives you faster response time to identify and resolve problems easily with built-in diagnostics.

Specifications

• Housing

• Polyurethane-paintedcast aluminum or stainless steel; NEMA 4X (IP66)

• Weight

• Painted aluminum, 4-wire remote:

• with display: 8 lb (4 kg)

• without display: 7 lb (3kg)

• Painted aluminum, 9-wire remote:

• with display: 14 lb (6 kg)

• without display: 13 lb (6 kg)

• Stainless steel, 4-wire remote:

• with display: 21 lb (10 kg)

• without display: 20 lb (9 kg)




• View product data sheet for full details.

• Mounting

• Integralor remote mounting options (stainless steel versions are remote mount only)Maybe remotely connected to any 4-wire or 9-wire Micro Motion sensorView product data sheet for full details.

• Available Outputs

• 1700: mA w/ Bell 202 HART FO/DO RS485 HART and Modbus
  2700:
  Analog: mA w/ Bell 202 HART FO/DO RS485 HART and Modbus
  Configurable I/O: mA w/Bell 202 HART configurable to mA, FO, or DO (default mA)configurable to FO, DO, orDI (default FO)
  View product data sheet for full details.

Features

• Maximize flexibility with integral or remote mounting

• Receive diagnostics for performance under entrained gas and batching from empty applications with MVD digital processing

• Lower wiring costs and install easily and quickly

• Eliminate the need for additional instruments with concentration and net flow measurement

• Rely on custody-transfer approval and certification for SIL2 and SIL3

• Gain real-time and in-process measurement integrity assurance with Smart Meter Verification

• Gain access to additional diagnostics and process information without added wiring costs with WirelessHART™

• Simplify flow-meter access with rugged Class I, Division 1 / Zone 1 housing with an optional local operator interface

•
