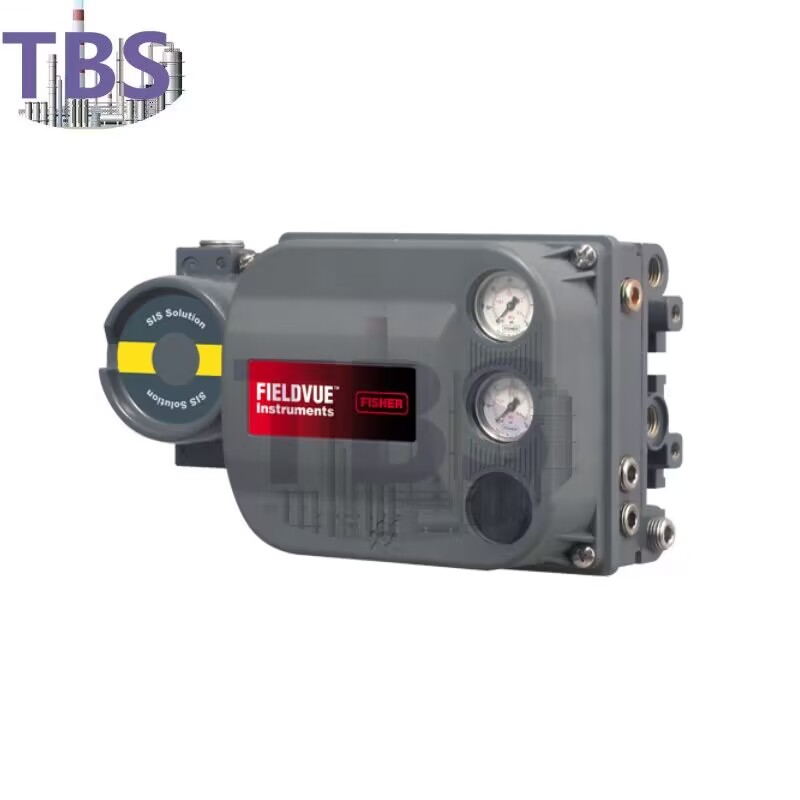

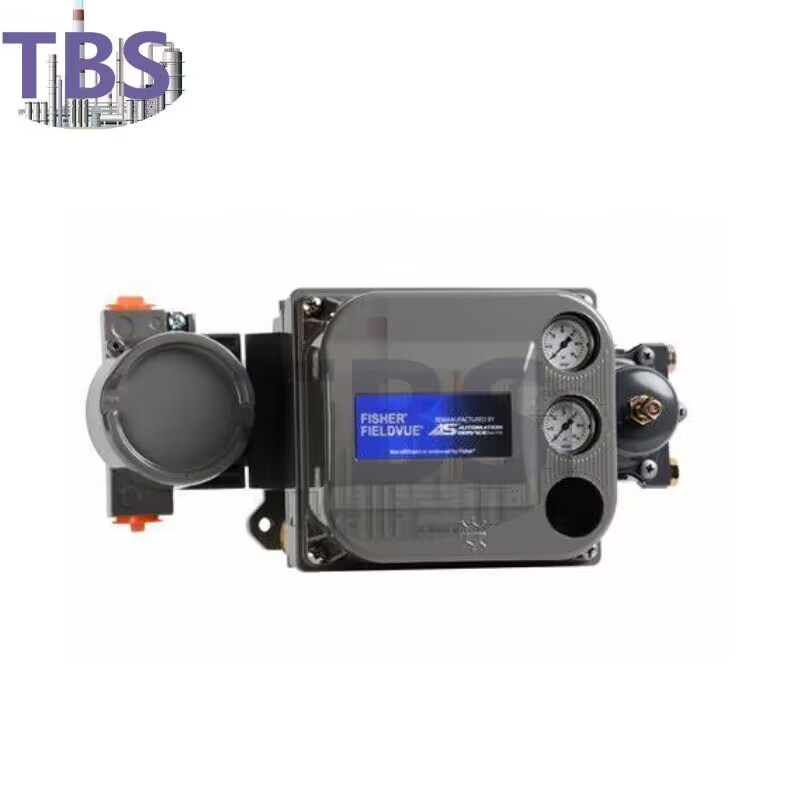

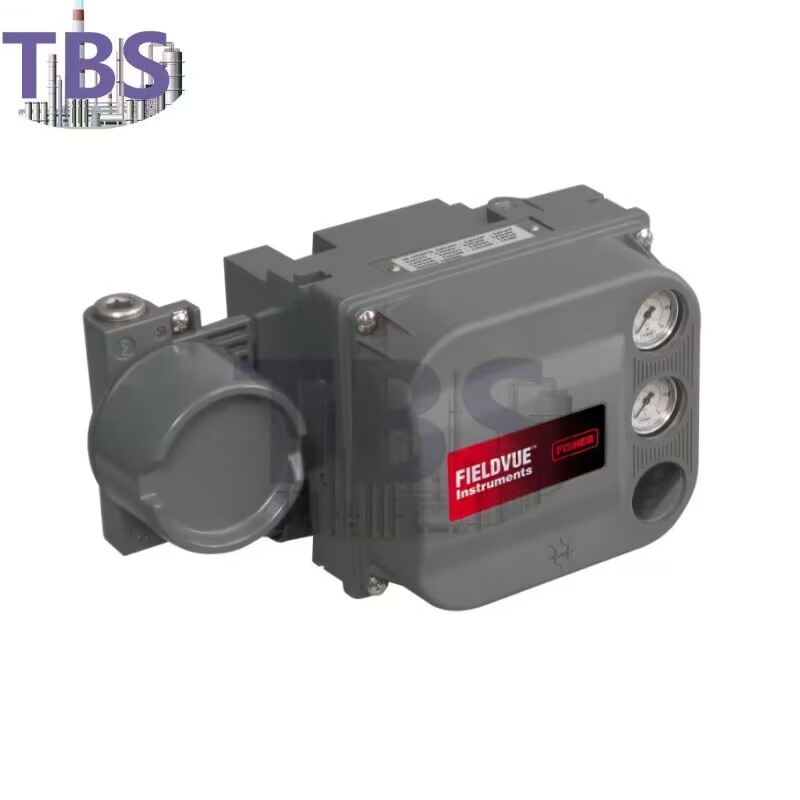

Fisher DVC6200 Digital Valve Controller

Available Mounting

• DVC6200 digital valve controller or DVC6215feedback unit:

• Integral mounting to Fisher 657/667 or GX actuators

• Window mounting to Fisher rotary actuators

  Sliding‐stem linear applications




• Quarter‐turn rotary applications

• DVC6205 base unit:

• for 2 inch pipestand or wall mounting (for remote‐mount)




• The DVC6200 digital valve controller or DVC6215
  feedback unit can also be mounted on other
  actuators that comply with IEC 60534‐6-1, IEC
  60534-6-2, VDI/VDE 3845 and NAMUR mounting
  standards.

Input Signal

• Point-to-Point

• Analog Input Signal: 4-20 mA DC, nominal; split ranging available




• Minimum Voltage Available at Instrument Terminals
  must be 9.5 VDC for analog control, 10 VDC for HART
  communication.




• Minimum Control Current: 4.0 mA

• Minimum Current w/o Microprocessor Restart: 3.5 mA

• Maximum Voltage: 30 VDC

• Overcurrent protected
  Reverse Polarity protected
  Multi-drop

• Instrument Power: 11 to 30 VDC at 10 mA




• Reverse Polarity protected

Supply Pressure

• Minimum Recommended: 0.3 bar (5 psig) higher than maximum actuator requirements

• Maximum: 10.0 bar (145 psig) or maximum pressure rating of the actuator, whichever is lower

• Medium:Air or Natural Gas

• Supply medium must be clean, dry and noncorrosive.





• Per ISA Standard 7.0.01
  A maximum 40 micrometer particle size in the air
  system is acceptable. Further filtration down to 5
  micrometer particle size is recommended. Lubricant
  content is not to exceed 1 ppm weight (w/w) or
  volume (v/v) basis. Condensation in the air supply
  should be minimized




• Per ISO 8573-1
  Maximum particle density size: Class 7
  Oil content: Class 3
  Pressure Dew Point: Class 3 or at least 10℃ less than the lowest ambient temperature expected.

Steady‐State Air Consumption

• Standard Relay

• At 1.4 bar (20 psig) supply pressure:
  Less than 0.38 normal m3/hr (14 scfh)

• At 5.5 bar (80 psig) supply pressure:
  Less than 1.3 normal m3/hr (49 scfh)

• Low Bleed Relay

• At 1.4 bar (20 psig) supply pressure:
  Average value 0.056 normal m3/hr (2.1 scfh)

• At 5.5 bar (80 psig) supply pressure:
  Average value 0.184 normal m3/hr (6.9 scfh)

Maximum Output Capacity

• At 1.4 bar (20 psig) supply pressure:
  10.0 normal m3/hr (375 scfh)

• At 5.5 bar (80 psig) supply pressure:
  29.5 normal m3/hr (1100 scfh)

Electromagnetic Compatibility

• Meets EN 61326-1:2021>

• Immunity—Industrial locations per Table 2 of
  the EN 61326-1 standard. Performance is
  shown in table 1‐3 below.




• Emissions—Class A
  ISM equipment rating: Group 1, Class A




• Lightning and Surge Protection—The degree of
  immunity to lightning is specified as Surge immunity
  in table 1‐3. For additional surge protection
  commercially available transient protection devices
  can be used.

Vibration Testing Method

• Tested per ANSI/ISA-S75.13.01 Section 5.3.5. A
  resonant frequency search is performed on all three
  axes. The instrument is subjected to the ISA specified
  1/2 hour endurance test at each major resonance.

Electrical Classification

• Hazardous Area Approvals

• CSA—Intrinsically Safe, Explosion‐proof,
  Division 2, Dust Ignition-proof

• FM— Intrinsically Safe, Explosion‐proof,
  Dust Ignition-proof, Non-Incendive

• ATEX— Intrinsically Safe, Flameproof, Type n
  Dust by intrinsic safety

• IECEx— Intrinsically Safe, Flameproof, Type n
  Dust by intrinsic safety and enclosure

• Electrical Housing

• CSA— Type 4X, IP66

• FM— Type 4X, IP66

• ATEX— IP66

• IECEx— IP66

Other Classifications/Certifications

• Natural Gas Certified, Single Seal Device— CSA, FM,
  ATEX, and IECEx

• Lloyds Register— Marine Type Approval

• CCC— China Compulsory Certification

• CML— Certification Management Limited (Japan)

• CUTR— Customs Union Technical Regulations
  (Russia, Kazakhstan and Belarus)

• DNV— Marine Type Approval

• ESMA— Emirates Authority for Standardization and
  Metrology - ECAS-Ex (UAE)

• INMETRO— National Institute of Metrology, Quality,
  and Technology (Brazil)

• KOSHA— Korean Occupational Safety & Health
  Agency (South Korea)

• NEPSI— National Supervision and Inspection Centre
  for Explosion Protection and Safety of
  Instrumentation (China)

• PESO CCOE— Petroleum and Explosives Safety
  Organisation - Chief Controller of Explosives (India)

• SANS— South Africa National Standards

Connections

• Supply Pressure: 1/4 NPT internal and integral pad for
  mounting 67CFR regulator

• Output Pressure: 1/4 NPT internal

• Tubing: 3/8‐inch recommended

• Vent: 3/8 NPT internal

• Electrical: 1/2 NPT internal or M20

Actuator Compatibility

• Sliding‐Stem Linear
  Linear actuators with rated travel between 6.35 mm
  (0.25 inch) and 606 mm (23.375 inches)

• Quarter‐Turn Rotary
  Rotary actuators with rated travel between
  45 degrees and 180 degrees(6)

Weight

• DVC6200
  Aluminum:3.5 kg (7.7 lbs)
  Stainless Steel:8.6 kg (19 lbs)

• DVC6205: 4.1 kg (9 lbs)

• DVC6215: 1.4 kg (3.1 lbs)

Construction Materials

• Housing, module base and terminal box:
  A03600 low copper aluminum alloy (standard)
  Stainless steel (optional)

• Cover: Thermoplastic polyester

• Elastomers: Nitrile (standard)
  Fluorosilicone (extreme temperature)

Options

• Supply and output pressure gauges or

• Tire valves

• Integral mounted filter regulator

• Low‐Bleed Relay(7)

• Extreme Temperature

• Remote Mount(8)

• Stainless Steel

• Integral 4‐20 mA Position Transmitter(9):
  4‐20 mA output, isolated
  Supply Voltage: 8‐30 VDC
  Reference Accuracy: 1% of travel span
  The position transmitter meets the requirements of
  NAMUR NE43; selectable to show failure high
  ( > 22.5 mA) or failure low (< 3.6 mA). Fail high only
  when the positioner is powered.

• Integral Switch(9):
  One isolated switch, configurable throughout the
  calibrated travel range or actuated from a device alert
  Off State: 0 mA (nominal)
  On State: up to 1 A
  Supply Voltage: 30 VDC maximum
  Reference Accuracy: 2% of travel span
