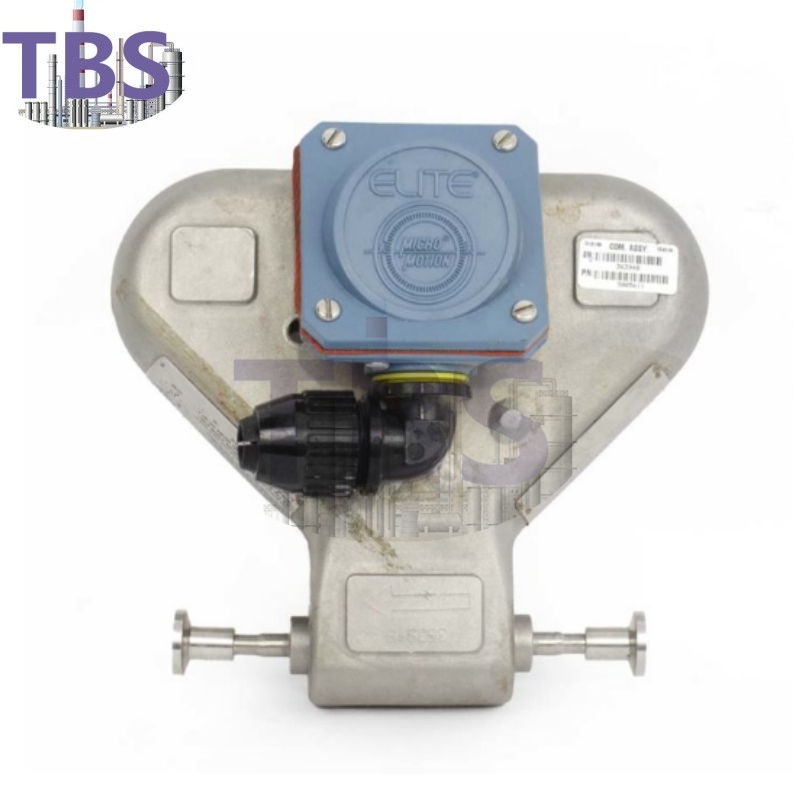

Micro Motion ELITE CMF010M Coriolis Meter, 1/10 Inch (DN2), 316L Stainless Steel

Specifications

• Mass flow accuracy (Liquid)

• ±0.10% of rate (standard)±0.05% of rate (optional)

• Mass flow repeatability (Liquid)

• ±0.05% of rate (standard)±0.025% of rate (optional)

• Volume flow accuracy (Liquid)

• ±0.10% of rate (standard)±0.05% of rate (optional)

• Volume flow repeatability (Liquid)

• ±0.05% of rate (standard)±0.025% of rate (optional)

• Mass flow accuracy (Gas)

• ±0.35% of rate

• Mass flow repeatability (Gas)

• ±0.20% of rate

• Density accuracy (Liquid)

• ±0.0005 g/cm3 (±0.5 kg/m3)

• Density repeatability (Liquid)

• ±0.0002 g/cm3 (±0.2 kg/m3)

• Temperature accuracy

• ±1 °C ±0.5% of reading

• Sensor maximum working pressure

• 1,812 psig (125 barg)

• Meter approvals, calibrations, and certifications

•
  •UL
  •CSA
  •IECEx
  •NEPSI
  •ATEX
  •Ingress Protection
  •EMC effects

Features

• Get unparalleled measurement sensitivity and stability from this uniquely designed meter

• Gain real-time and in-process measurement integrity assurance with Smart Meter Verification

• Realize unmatched flow and density measurement performance in your most challenging liquid, gas and slurry applications

• Achieve superb measurement confidence with the highest immunity to fluid, process and environmental effects

• Improve scalability with a broad array of application coverage including hygienic, cryogenic and high-pressure

• Implement the widest process-measurement range – -400°F to 662°F (-240°C to 350°C) and up to 6,000 psig (414 barg)

• Widest range of meter approvals and certifications, including; CSA, ATEX, NEPSI, IECEx, Ingress Protection 66/67, SIL2 and SIL3, marine, and custody transfer approvals

• Choose from models available in 316L Stainless Steel, C-22 nickel alloy and super-duplex materials

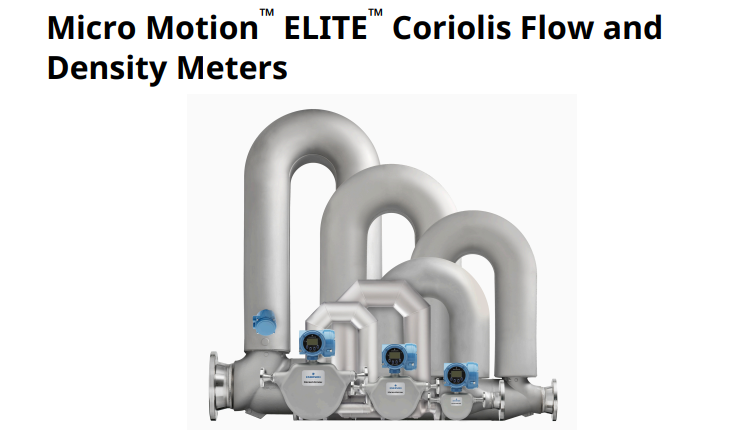

• Interact with our 3D model to learn more about our ELITE Coriolis Flow and Density Meters
