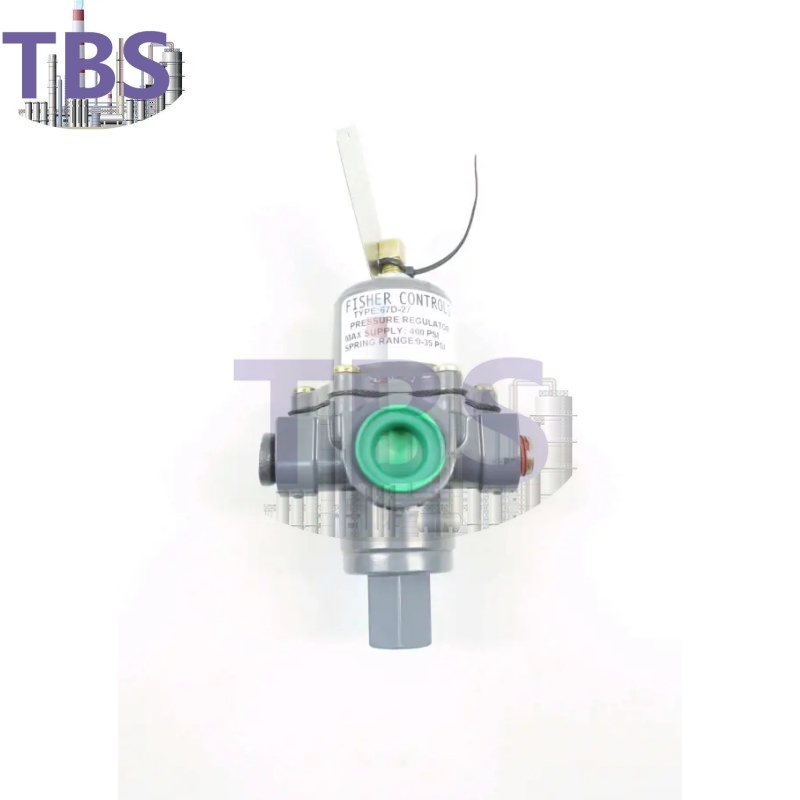

Fisher 67D Series Pressure Reducing Regulators

Fisher 67D 67DFR and 67DFSR series reduced pressure regulators

The Fisher 67D series Director-acting regulators and filter regulators are commonly used to provide reduced, stable vaporized liquid pressure to director-acting controllers and other pneumatic instruments.

• Compact

• Command the supply regulator

• Pressure load type regulator

• Can be used for acid gases

• Optional stainless steel construction

• Full efficiency circulation capacity• Internal release valve

•Smart Bleed™

• Integrated filter

• Easy maintenance

• Strong structure

• Double second exit

• Corrosion-resistant fasteners

Optional configuration

Type 67D and 67DS: Voltage regulators are standard instrument voltage regulators.

No filter or internal safety valve.

Type 67DF and 67DFS: Filter regulators are equipped with filters for cleaning

Supply the particles in the gas.

Type 67DFR and 67DFSR: Filter regulator with filter and internal safety valve,

Use of soft seat to ensure reliable shut-off without visible leakage.

Models 67DR and 67DSR: The regulator has an internal safety valve and uses a soft seat

Ensure reliable shutdown without visible leakage.

Body size and port connection：1/2 NPT

Maximum inlet pressure (body rating)

All models with filter: 250 psig / 17.2 bar

All models without filter: 400 psig / 27.6 bar

Maximum emergency exit pressure

Above outlet pressure setpoint 150 psi / 10.3 bar, maximum 250 psi / 17.2 bar

Pressure extraction method

Internal sampling pressure

Temperature range

Using nitrile butadiene rubber (NBR) :

Standard bolts: -20 to 180ºF / -29 to 82º

Stainless steel bolts: -40 to 180ºF / -40 to 82ºC

Use fluorine rubber (FKM) :

Polyethylene filter (standard) : 0 to 180ºF / -18 to 82ºC

Polyvinylidene fluoride (PVDF), stainless steel or glass filter (optional) : 0 to

300ºF / -18 to 149ºC

Using silicone rubber (VMQ) valve film, cryogenic nitrile butadiene rubber (NBR) O-rings, and cryogenic bolts: -60 to 180ºF / -51 to 82ºC

With pressure gauge: -40 to 180ºF / -40 to 82ºC

With automatic discharge valve: 40 to 175ºF / 4 to 79ºC

Approximate weight

67D and 67DR models: 1.2lb / 0.5kg

67DF and 67DFR models: 2.0 lb / 0.9 kg

67DS and 67DSR models: 2.8lb / 1.2kg

67DFS and 67DFSR: 4.6lb / 2.1kg

Available configuration

Type 67D: Direct acting with aluminum body and no internal pressure relief valve

Pressure regulator

Model 67DR: Aluminum body with internal relief valve

Type 67DS: Stainless steel body without internal pressure relief valve

Model 67DSR: Stainless steel body with internal pressure relief valve

Model 67DF: Aluminum body with filter, no internal relief valve

Model 67DFR: Aluminum body with filter and internal relief valve

Model 67DFS: Stainless steel body with filter, no internal pressure relief valve

Model 67DFSR: Stainless steel body with filter and internal relief valve
