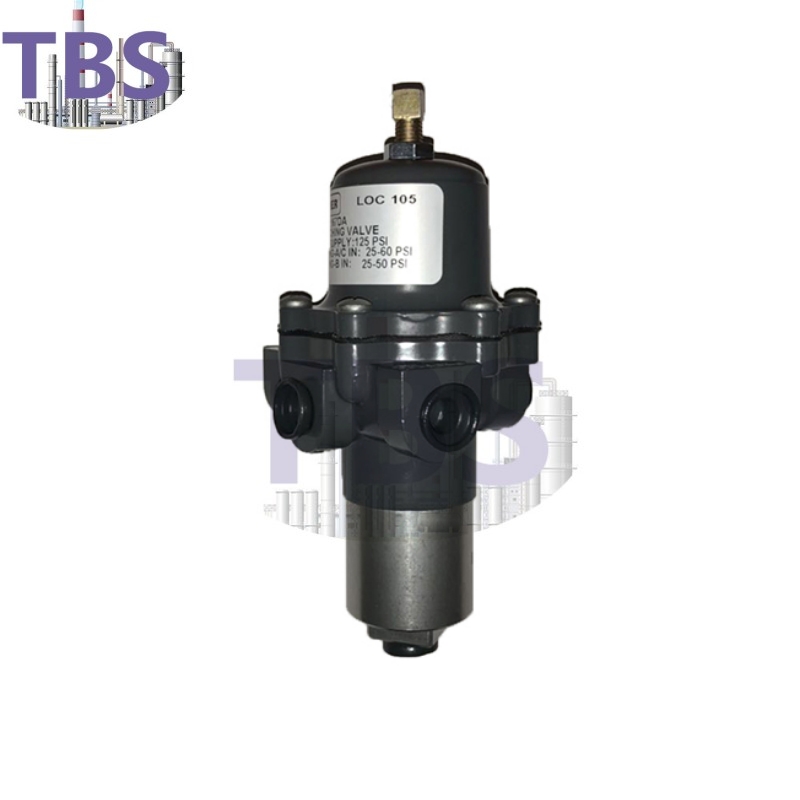

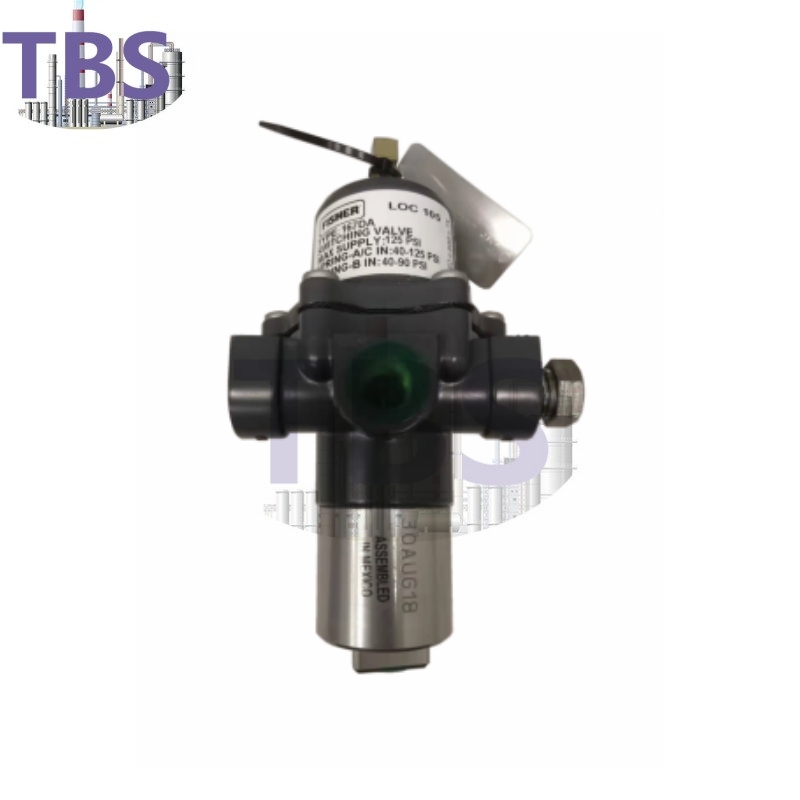

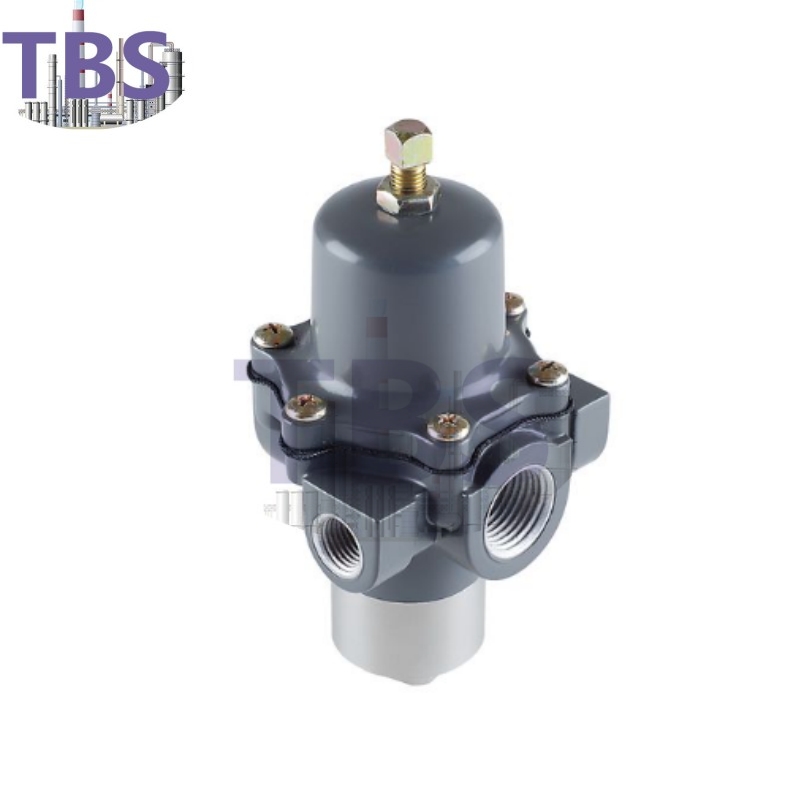

Fisher 167D Series Switching Valves

Specifications

• Available Constructions

• 167D and 167DS: two-way switching valves
  167DA and 167DAS: three-way switching valves


• Body Size and End Connection Style

• Ports A and C: 1/4 or 1/2 NPT
  Vent and Control Pressure Connections (Port D) and Port B: 1/4 NPT


• Maximum Inlet Pressure (Body Rating)

• 400 psig / 27,6 bar?

• Temperature Capabilities

• Standard Bolting: -20 to 180°F / -29 to 82°C
  Stainless Steel Bolting: -40 to 180°F / -40 to 82°C
  FKM Trim: 0 to 300°F / -18 to 149°C

• Pressure Registration

• Internal

• Approximate Weights

• Types 167D and 167DA: 1.2 Pounds / 0,5 kg
  Types 167DS and 167DAS: 2.8 Pounds / 1 kg


• Additional Technical Data

• For additional technical information, contact your local Sales Office or refer to technical documentation.

Features

• Compact

• Easy and Accurate Adjustment

• Ease of Maintenance

• Rugged Construction

• Corrosion Resistant Fasteners

• Optional Stainless Steel Material Construction

Body size and port connection

Ports A and C: 1/4 or 1/2 NPT

Ventilation and control pressure (port D) and port B: 1/4 NPT

Maximum inlet pressure (body rating)

400 psig / 27.6 bar

Temperature range

Standard bolts: -20° to 180oF / -29° to 82oC

Stainless steel bolts: -40° to 180oF / -40° to 82oC

Fluororubber (FKM) : 0° to 300oF / -18° to 149oC

Approximate weight

Models 167D and 167DA: 1.2lb / 0.5kg

167DS and 167DAS: 2.8lb / 1kg
