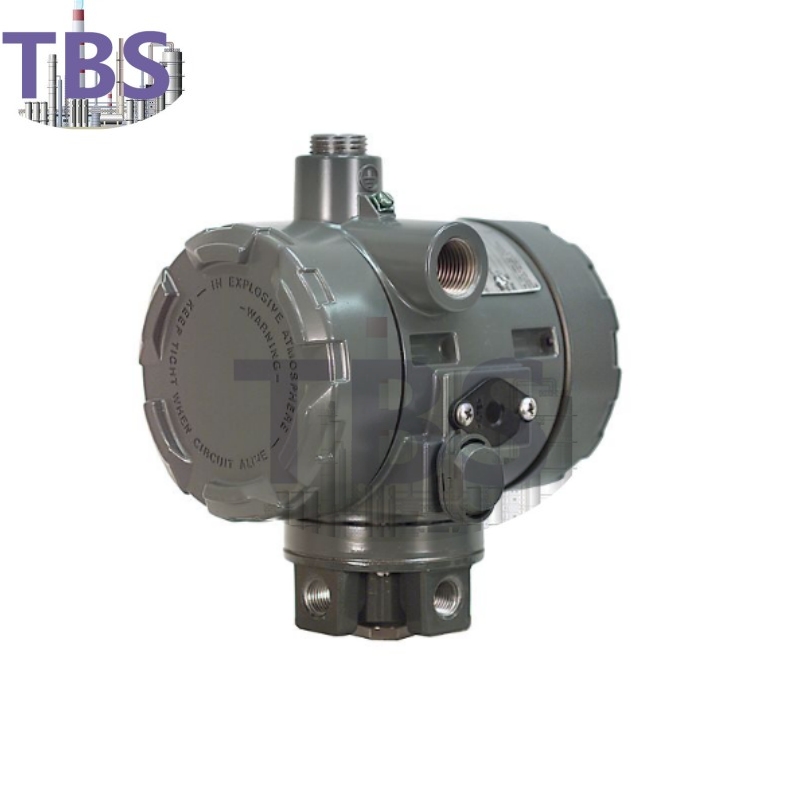

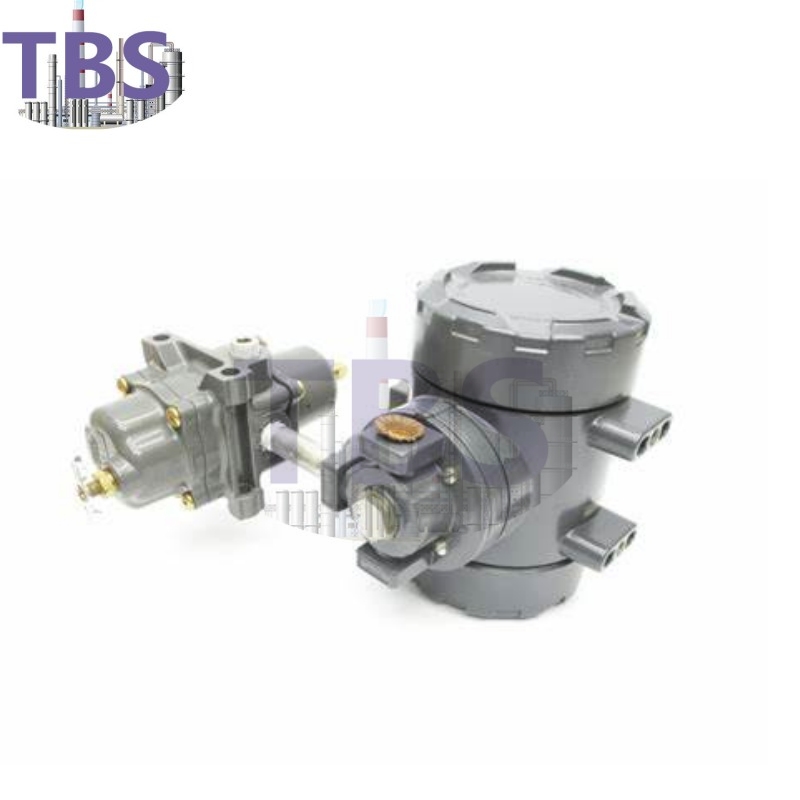

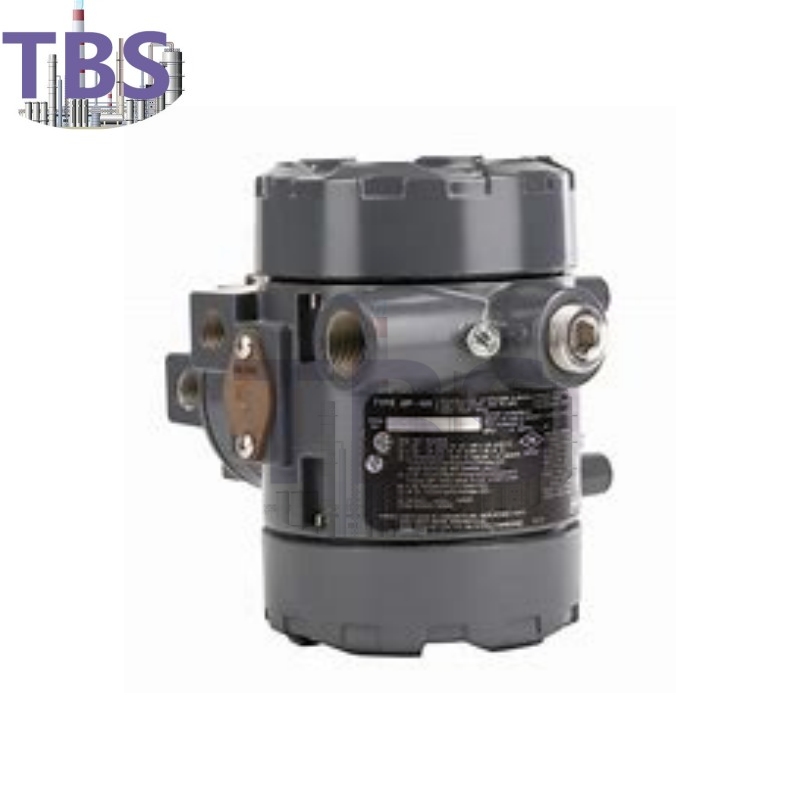

Fisher i2P-100 Electro-Pneumatic Transducer

The Fisher i2P-100 transducer is designed to meet environmental concerns but optimized to provide maximum uptime. Featuring dual compartments with an explosive-fluid seal to prevent natural gas from migrating to the electrical conduit. Additional advantages include corrosion resistance, tolerance to dirty supply, and vibration resistance.

Specifications

• Area Classification

• Explosion Proof, Intrinsically Safe, Non-incendive, General Purpose, Flame Proof

• Certifications

• CSA, FM, ATEX, IECEx, CUTR, Regional

• Communication Protocol

• 4-20mA Analog

• Data Interface

• Wired

• Diagnostics

• No

• Input Signal

• Electric

• Max Outlet Pressure

• 33 psig

• Mounting Type

• Remote Mount, Actuator Mount

• Operating Temperature

• Standard Temperature

• Position Control

• Modulating Control

• Power Source

• Local

• Supply Media

• Air, Natural Gas

• Other Configurations

• Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.

The Fisher i2P-100 converter is designed to be environmentally friendly and optimized to provide maximum uptime. It has a double chamber sealed with explosive liquid to prevent the migration of natural gas into the electrical conduit. Additional advantages include anti-corrosion, tolerance of dirt supply and shock resistance.

Area classification Explosion-proof, intrinsically safe, non-flammable, general purpose, fireproof

Certification CSA, FM, ATEX, IECEx, CUTR, region

Communication protocol 4-20mA simulation

Data interface wire

Diagnostic none

Input signal electrical

Maximum outlet pressure 33 psig

Installation type Remote installation, actuator mounted

Operating temperature Standard temperature

Position control modulation control

Power local

Supply medium air, natural gas

Additional configurations Contact your local Emerson business partner or sales office to learn more about technical specifications or options for this product.
