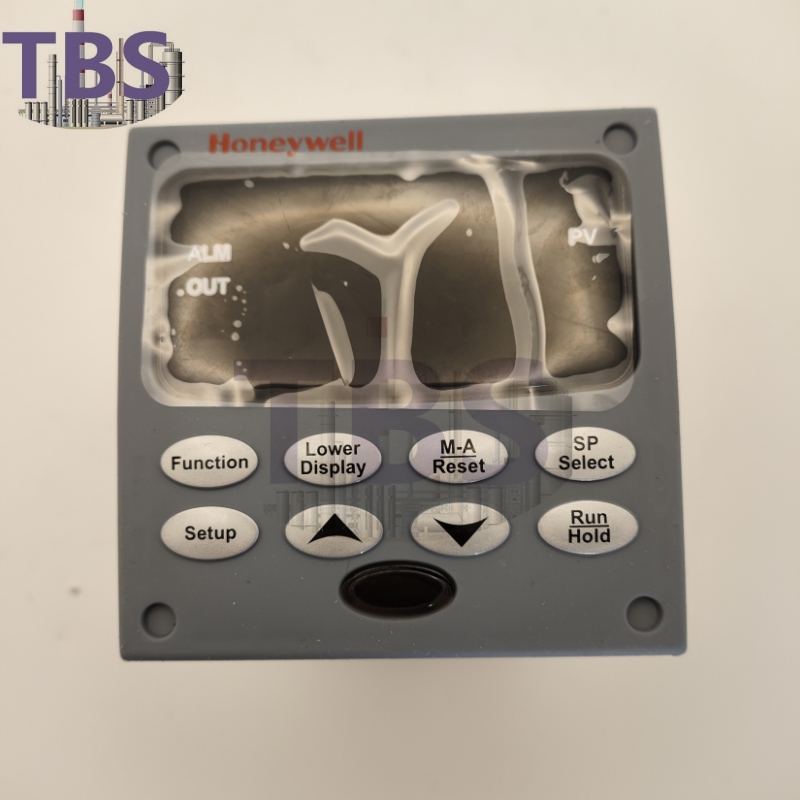

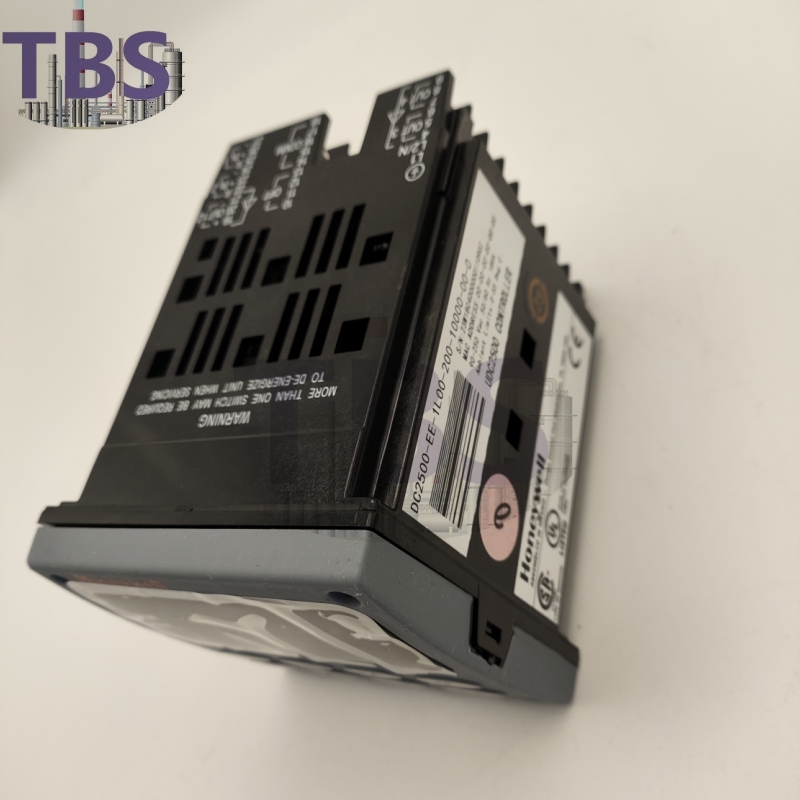

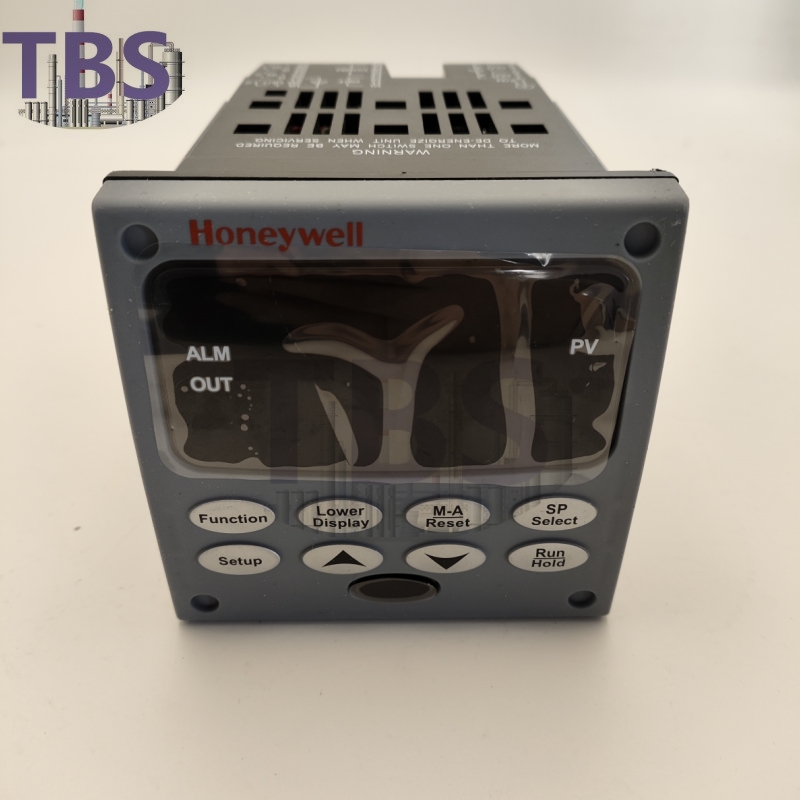

Honeywell DC2500 Temperature Limit Controller

Specifications & Description

• Manufacturer : Honeywell

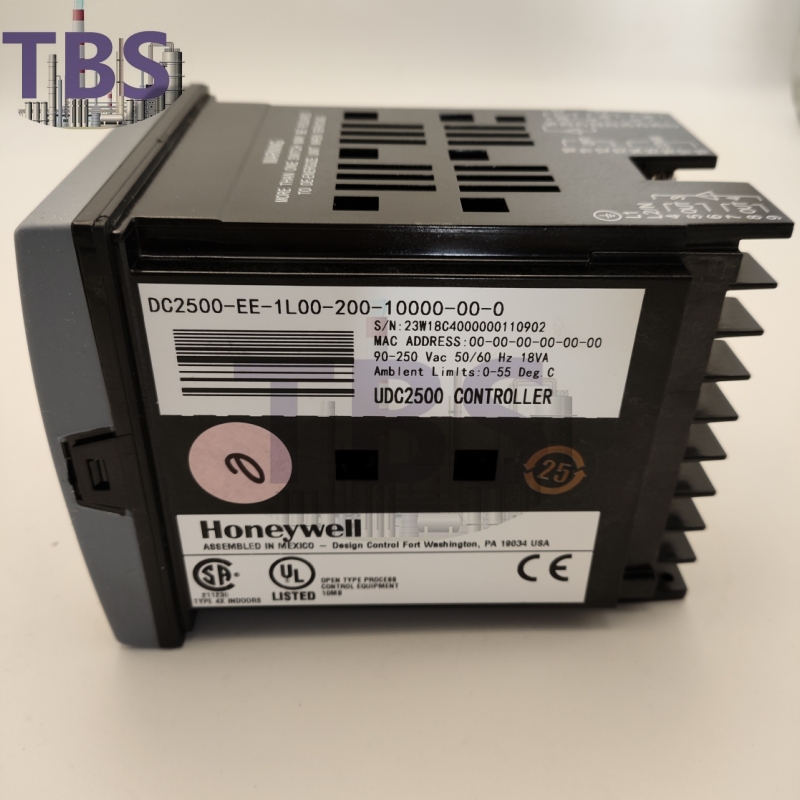

• Product No. : DC2500-EE-1L00-200-10000-E0-0

• Product type : UDC2500 Universal Digital Controller

• DC2500 : Digital Controller for use with 90 to 250Vac Power

• Output #1 : E = Electro Mechanical Relay (5 Amp Form C)

• Output #2 and Alarm #1 or Alarms 1 and 2 : E = E-M Relay (5 Amp Form C) Plus Alarm 1 (5 Amp Form C Relay)

• Communications : 1 = Auxiliary Output/Digital Inputs (1 Aux and 1 DI or 2 DI)

• Software Selections: L = Limit Controller (Includes Dual Display Option)

• Reserved : 0 = No Selection

• Infrared interface : 0 = None

• Input 1 : 2 = TC, RTD, mV, 0-5V, 1-5V, 0-20mA, 4-20mA

• Input 2 : 00 = None

• Approvals : 1 = CE, UL, CSA and FM

• Tags : 0 = None

• Future Options : 0 = None

• Future Options : 0 = None

• Future Options : 0 = None

• Manuals : E = English (Hard Copy) Manual (51-52-25-127)

• Certificate : 0 = None

• No Selection : 0 =None

• Weight : 1.3 Kg

• Shipping weight : 2.5 Kg

MORE ABOUT THIS ITEM

These microprocessor-based controllers are the next generation of UDC controllers and offer a high degree of functionality and reliability. Ideal for regulating temperature in a variety of applications including furnaces, ovens, environmental chambers, packaging machinery, plastic processing and more.
Features Diagnostic feature monitors the condition of the thermocouple — to determine whether it's good, failing, or in danger of imminent failure.
Heater breaker alarm continuously checks the output circuit to ensure the heater has not failed.
Accutune III™ software with fuzzy logic overshoot suppression, and true plug-and-play tuning algorithm to tune both the heat and cool side of a duplex control.
Universal power supply covers voltage range of 90 to 264 VAC, 50/60 Hz, which conforms to the standard AC voltages found worldwide.
Set points that can be configured for either two local setpoints or one local and one remote setpoint. (models 89556-40 thru 89556-43)
PV hot start allows the controller to initialize the local setpoint at the current PV value upon power start up in the event of power loss.
Dual set tuning: configured PID parameters can be selected automatically based upon the PV or SP value.
Second input option provides a second linear voltage or current input.
Dual line LED with the capability of displaying multi-language configuration prompts. A 4 character upper display and a 6 character, 14-segment, alphanumeric lower display.
High/Low Limit Controller (model 89556-44) is designed to provide a safety shut-off and optional alarm. A latched relay output is activated when the process parameter either exceeds or falls below the desired value, providing a fail-safe cutoff which has to be manually reset before the process can continue. Features universal input and is FM approved.
Call our Application Specialists for more information on these products or to special order a controller with other options.

Designed to provide a safety shut-off and optional alarms for use in a wide variety of applications
