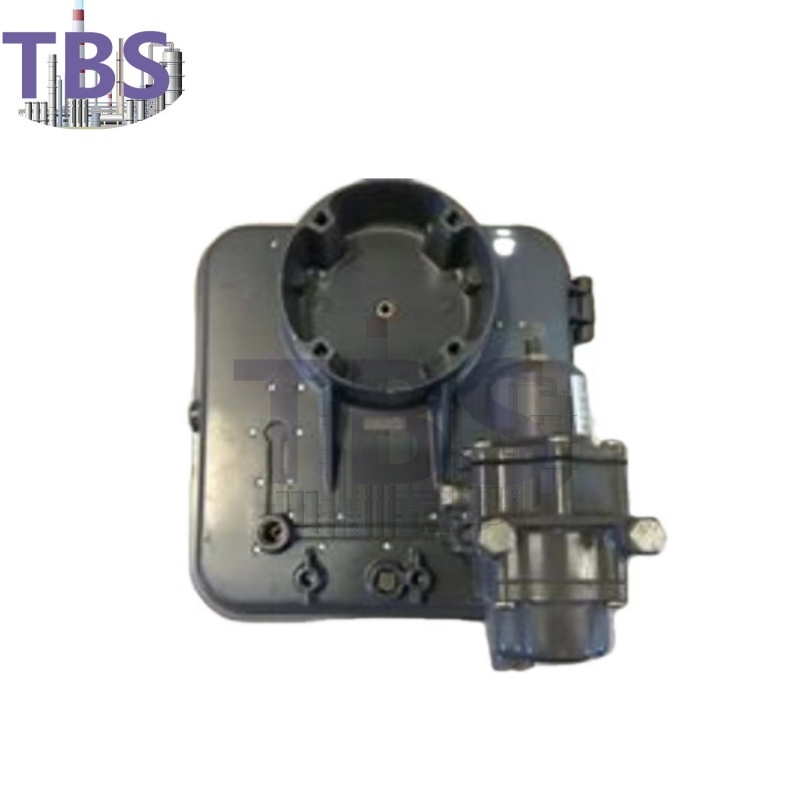

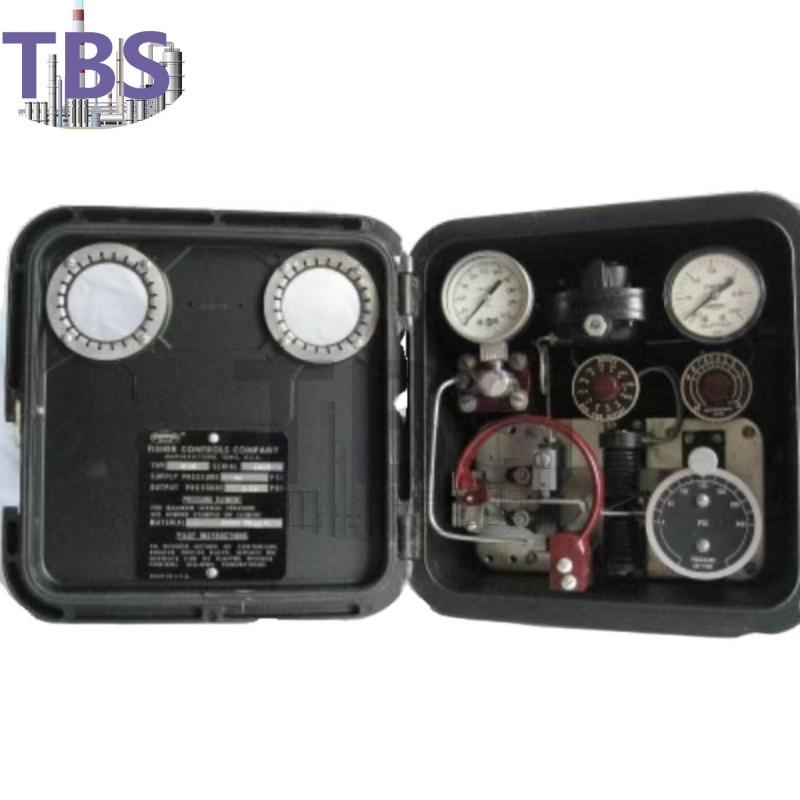

Fisher 2500 Pneumatic Level Controller

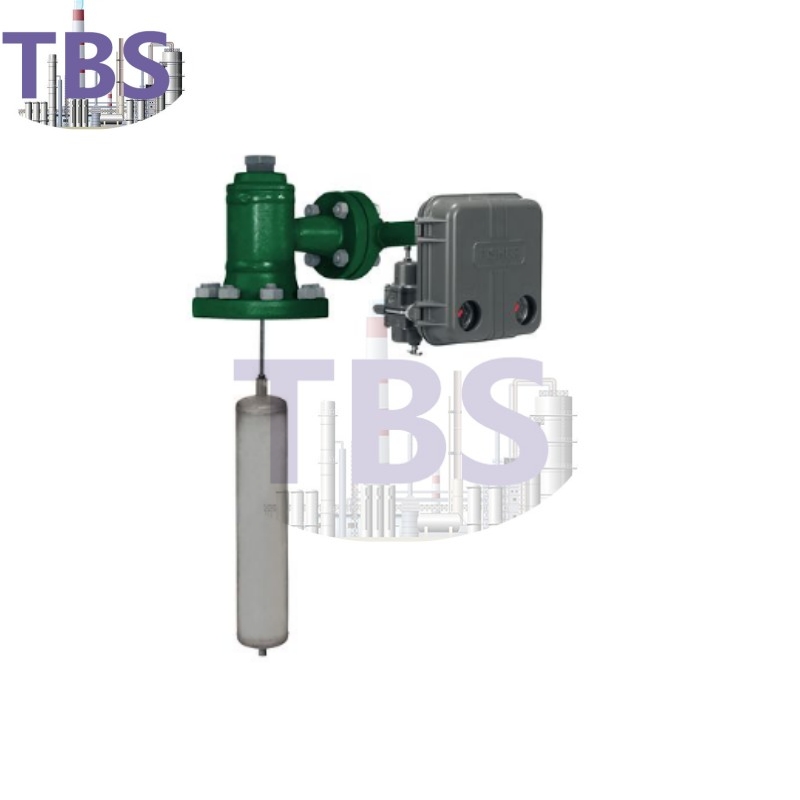

Fisher 2500 Pneumatic Level Controlrs Are Rugged, Dependable, and Simply Constructure Pneumatic Instruments. In Conjunction with a Fisher, They Series Sensor, They s ENSE LIQUID Level or Interface Level in a Vessel, and Produce A Standard Pneumatic Output Signal Proportional to the Process Variable.

Advantage

-Easy to adjust -through simple knob control settings, proportional valve opening, and replacement changes.

-Simple structure and durability -there are very few activity parts. The blade driving bearing and a torque of a rotation shaft in the float sensor can reduce the friction in the operation. The stress level of the float sensor can reach CL2500.

-Co Permia — The outer bucular sensor provides a variety of positioning and connection forms, and all the bucket sensors can be installed on the left or right.

-The is very sensitive to small changes — Floating can respond to changes in the small proportion, so these instruments can be used for density applications and other applications that need to respond to low -level input signal changes.

-Frofile and reversible -Action method from positive to righteousness to reaction is on -site reversible, and there is no need for other components, and vice versa.

-Rrowth maintenance costs — Use spring steel wire to clean the relay port in use. No need to remove the torque tube arm to replace the torque tube

-Re reduction in operating costs -The amplifier exhaust system is opened only when the output pressure decreases, thereby saving gas source pressure.

-S smaller size of the container required for stable control -In the standard configuration of the Floor 249 series sensor, there is a liquid damping hole in the lower balance connector to help provide stability in applications with a small container capacity, and reduce the proportional valve settings Essence

Specifications

• Area Classification

• Group II Category 2 Gas and Dust

• Certifications

• ATEX, PED, CUTR

• Diagnostics

• No

• Max Outlet Pressure

• 35 psi

• Mounting Type

• 249 Series Torque Tube Arm Mounted

• Operating Temperature

• Standard Temperature

• Position Control

• On/Off, Control, Monitoring

• Process Control

• Level

• Supply Media

• Air, Natural Gas

• Other Configurations

• Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.
