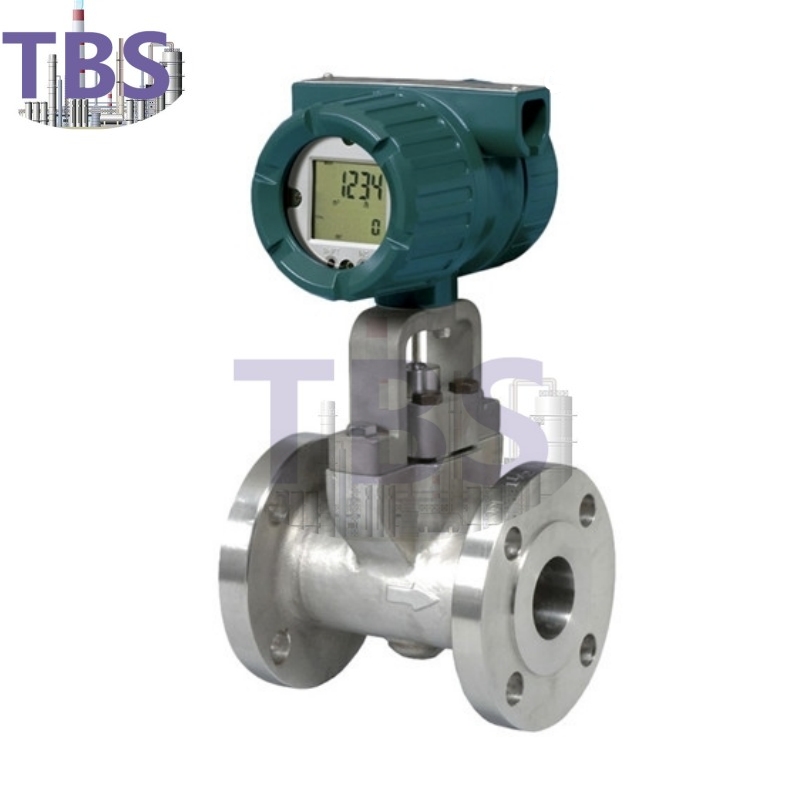

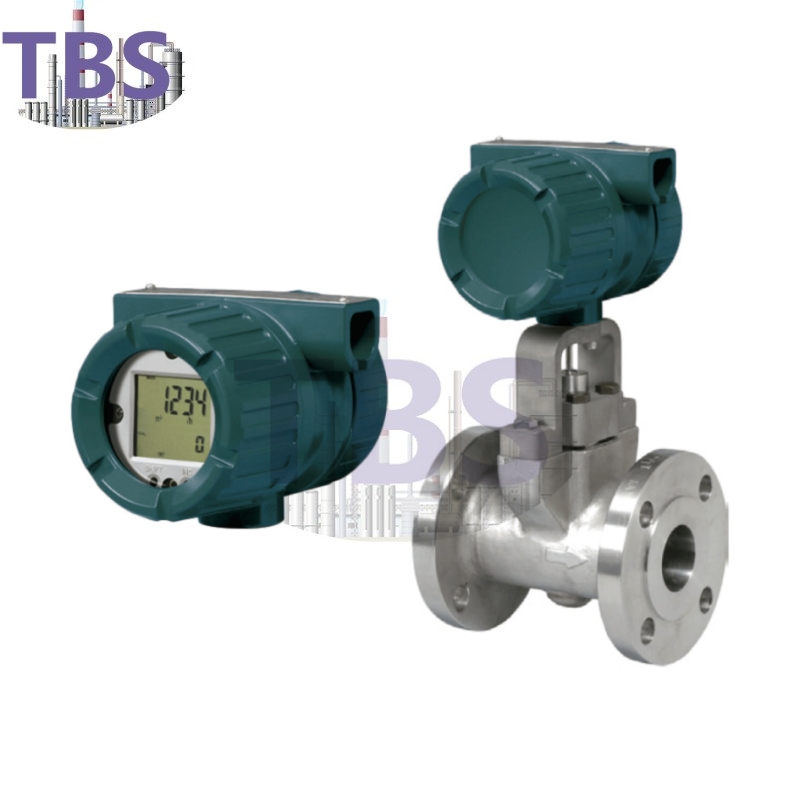

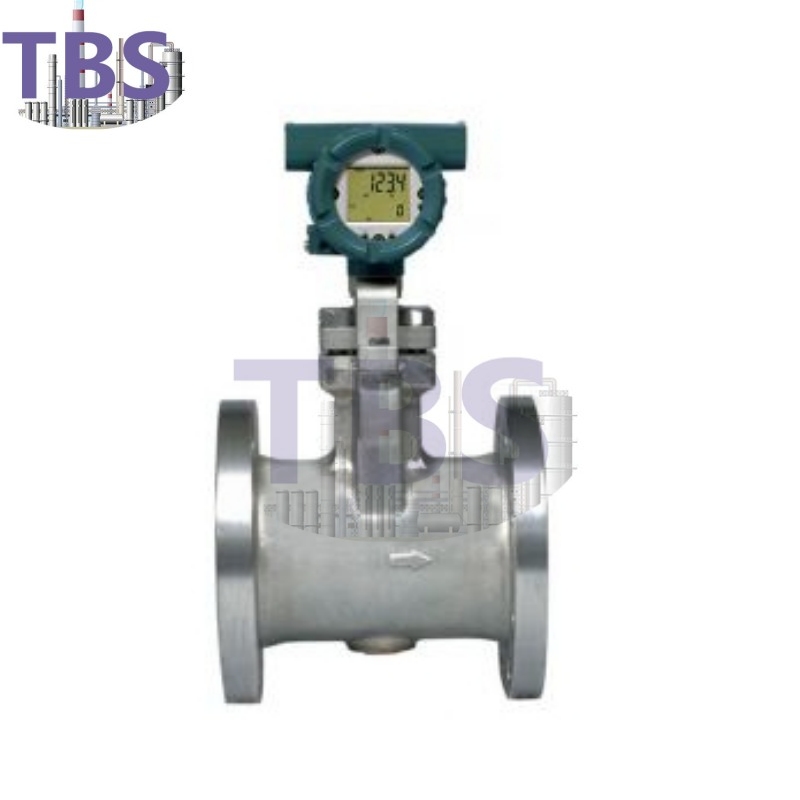

Yokogawa DY080 digital vortex flowmeter

A brief introduction:

Yokogawa vortex flowmeter basic technical specifications; New features with SSP(Digital Signal Processing) technology SSP is part of the digital vortex flowmeter circuit. SSP can analyze the fluid situation in the digital vortex flow halometer and use the analyzed data

Automatic adjustment for the use of conditions, SSP can correctly detect the vortex in the low flow area, so as to significantly improve the metering of the measured parts, the "digital signal processing technology created by the Japanese Seiji Company is from the previous travel temperature flowmeter.

Unprecedented, advanced self-diagnostic capabilities can identify and show signs such as larger pipe vibrations and flows

Details:

Basic technical specifications:

New features with SSP(Digital Signal Processing) technology

SSP is a part of the digital vortex flowmeter circuit. SSP can analyze the fluid condition in the digital vortex flowmeter, and automatically adjust the use condition with the analyzed data. SSP can correctly detect the vortex in the low flow zone.

Thus, the measurement stability is significantly improved. This feature is a digital signal processing technology pioneered by Yokogawa Company in Japan, which is never found in previous vortex flowmeters.

Advanced self-diagnostics

Can identify and display use conditions such as large pipe vibrations and flow anomalies.

High precision

±0.75% of reading (liquid)

±1% of reading (gas, steam)

Large temperature range

High temperature type: up to 450℃

Low temperature type :* up to -200℃

Simple parameter setting

Use frequent parameter combinations in one module, thus reducing parameter setting time.

Clear and concise display

Can display traffic, cumulative traffic and self-diagnosis information at the same time.

Analog/pulse dual output

Output flow signal and pulse signal simultaneously

Alarm output

If an alarm occurs, there will be an alarm signal output.

Status output (in-stream switch function)

When the alarm occurs, the alarm signal is output by the contact. In addition, when the flow rate is low dry setpoint, the signal can be output by the contact.

Compact converter

BRAIN/HART communication and panel setting buttons are available

Sensors of the same construction are suitable for dry measurement of liquids, gases and vapors

Stainless steel sensor no moving parts, durable, excellent

Meets NACE standards

Meets NAMUR 43 standard

The length of the separated cable is 30m

Flameproof structure :JIS/FMIATEX/CSA/SAA
