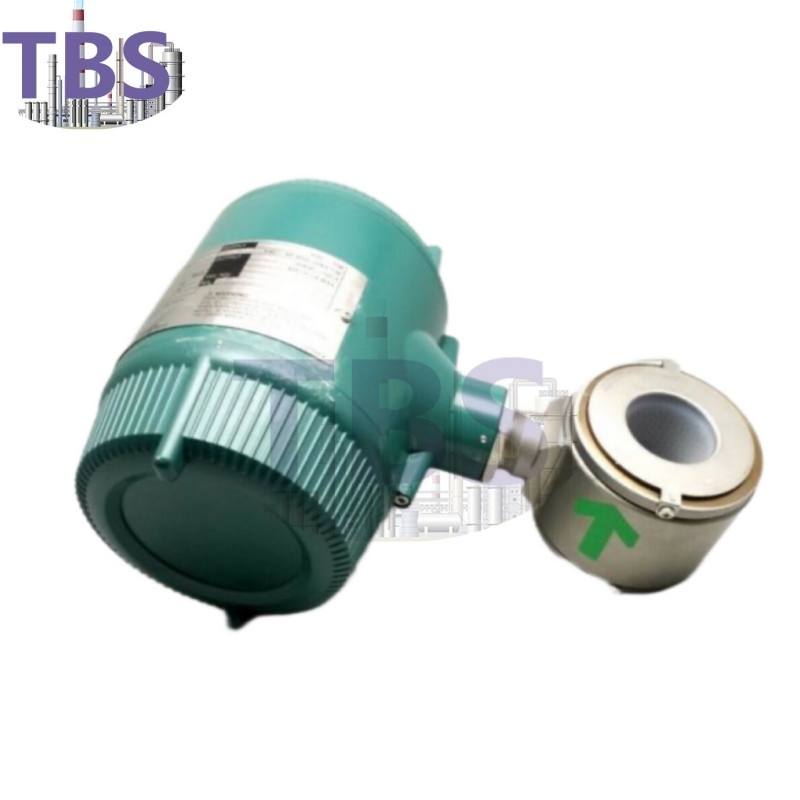

Yokogawa AXF040 Magnetic Flow Meters
User-oriented Functionality
Fluid Adhesion Level Diagnosis
Flexible Electrical Connection Direction
Clear and Versatile Indications

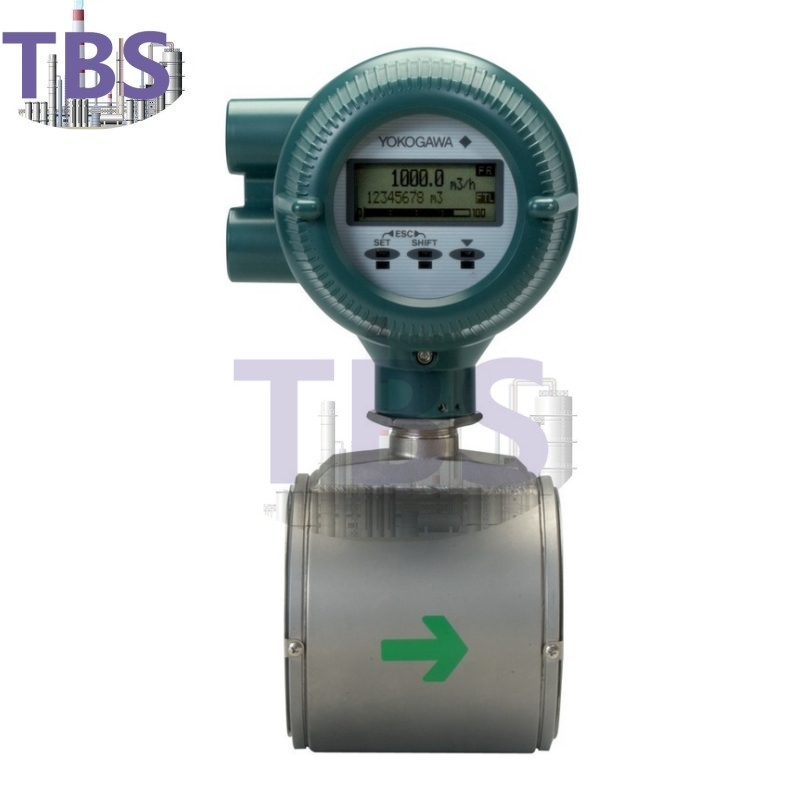

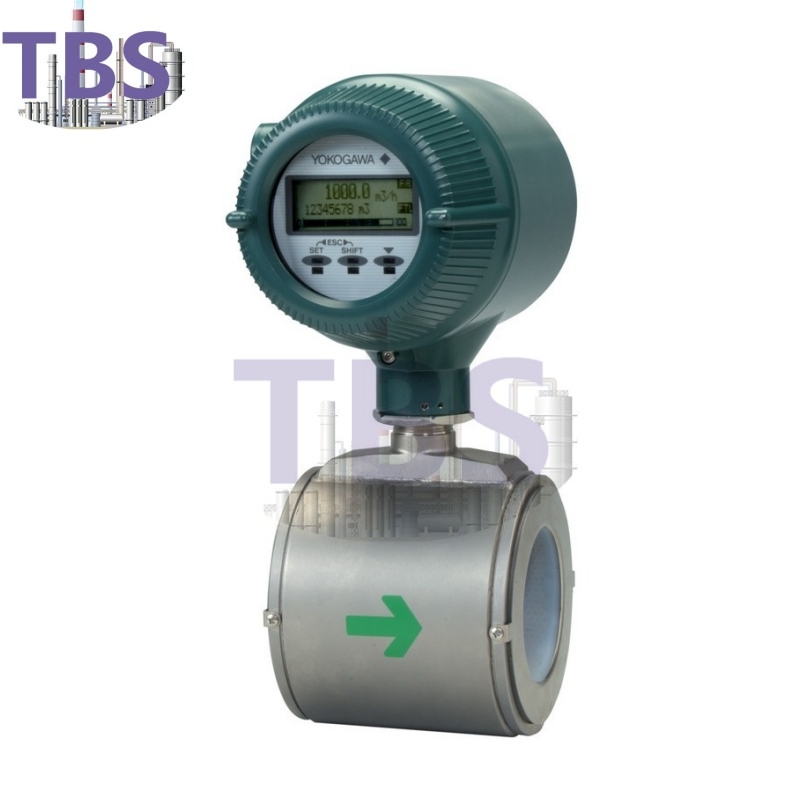

Yokogawa AXF040H AXF Magnetic Flowmeter
Yokogawa AXF040H AXF Magnetic Flowmeter
Therefore fieldbus communication type is also available.
Furthermore, the AXF040H similarly features include:
AXF002 Series ——————–size 2.5 mm (0.1 in.) flowmeter
AXF005 Series ——————–size 5 mm (0.2 in.) flowmeter
AXF010 Series ——————–size 10 mm (0.4 in.) flowmeter
AXF015 Series ——————–size 15 mm (0.5 in.) flowmeter
AXF025 Series ——————–size 25 mm (1.0 in.) flowmeter
AXF032 Series ——————–size 32 mm (1.25 in.) flowmeter
AXF040 Series ——————–size 40 mm (1.5 in.) flowmeter
AXF050 Series ——————–size 50 mm (2.0 in.) flowmeter
AXF065 Series ——————–size 65 mm (2.5 in.) flowmeter
AXF080 Series ——————–size 80 mm (3.0 in.) flowmeter
AXF100 Series ——————–size 100 mm (4.0 in.) flowmeter
AXF125 Series ——————–size 125 mm (5.0 in.) flowmeter
AXF150 Series ——————–size 150 mm (6.0 in.) flowmeter
AXF200 Series ——————–size 200 mm (8.0 in.) flowmeter
AXF250 Series ——————–size 250 mm (10 in.) flowmeter
AXF300 Series ——————–size 300 mm (12 in.) flowmeter
Description
YOKOGAWA's magnetic flowmeter is supported by a long history of more than half a century. W.
The ADMAG AXF is the magnetic flow meter which has adopted the proven Dual Frequency Excitation. Moreover, the Enhanced Dual Frequency Excitation has been newly added to tackle more severe applications.
The AXF has user-friendly functions; such as an electrode adhesion level diagnosis function, infra-red switches which can be used for setting parameters without opening the case cover, ability to change the direction of electrical connection on the site.
Based on FOUNDATION™ fieldbus specifications, AXF Fieldbus models offer more flexible instrumentation through a higher level communication capability and propose the cost reduction by multi-drop wirings with less cables. FOUNDATION™ fieldbus is a registered trademark of Fieldbus FOUNDATION.
Note: The "Dual Frequency Excitation Method" is a Yokogawa innovation.
Yokogawa AXF040G Magnetic Flowmeters AXF040G
| AXF Remote Flowtube | AXF Integral Flow meter | AXFA14 Converter | AXFA11 Converter | |
| Size | 2.5 to 400 mm (0.1 to 16 inch) [depends on specifications] | 2.5 to 400 mm (0.1 to 16 inch) [depends on specifications] | Combined with Remote type flowtube 2.5 to 400mm (0.1 to 16 inch) | Combined with Remote type flowtube (Note) 2.5 to 400m (0.1 to 16 inch) |
| Type of Use | General-purpose use, Ex-proof type, Sanitary type, Submersible type | General-purpose use, Ex-proof type, Sanitary type | General-purpose use, Ex-proof type | General-purpose use |
| Fluid Temp. | -40 to 160 deg.C (-40 to 320 deg.F) [depends on specifications] | -40 to 130 deg.C (-40 to 266 deg.F) [depends on specifications] | - | - |
| Ambient Temp. | -40 to 60 deg.C (-40 to 140 deg.F) [depends on model type] | |||
| Accuracy | 0.35% of rate (Optional ; 0.2% of rate) | |||
| Fluid Conductivity | 1 micro-S/cm or larger (depends on nominal pipe size and fluid condition) | |||
| Lining | Fluorocarbon PFA/Ceramics/Polyurethance Rubber/ EPDM Rubber/ Natural Soft Rubber [depends on model type] | - | - | |
| Process Connection | Wafer, Flange, Sanitary connections (Clamp[Tri-clamp, DIN, ISO], Union thread[DIN, ISO SMS], Butt-weld), etc. | - | - | |
| Maximum Cable Length | - | - | 100m (330 ft) | 200m (660 ft) |
| Indicator | - | Multi line backlit LCD (Full dot-matrix) | ||
| Diagnosis | Adhesion diagnosis, Empty pipe, Coil open, etc. | |||
| Alarm message | Alarm message with corrective measures is indicated (English, German, French, Italian, Spanish, Japanese) | |||
| Excitation method | Dual Frequency Excitation: AXF sizes 2.5 to 400mm, Pulsed DC Excitation: AXW sizes 500 to 1800 mm (Note), Enhanced Dual Frequency Excitation (optional): AXF sizes 25 to 200 mm | |||
| Ex-proof type | ATEX, FM, CSA, IECEx, TIIS | - | ||
| Options | Replaceable electrode, Rotatable terminal box(converter), Mirror finished lining surface(for PFA/Ceramics), Special gaskets, etc. | |||
Refer to GS sheet for details.
Note: AXFA11 Converter can be also combined with AXW Remote Flowtube.
